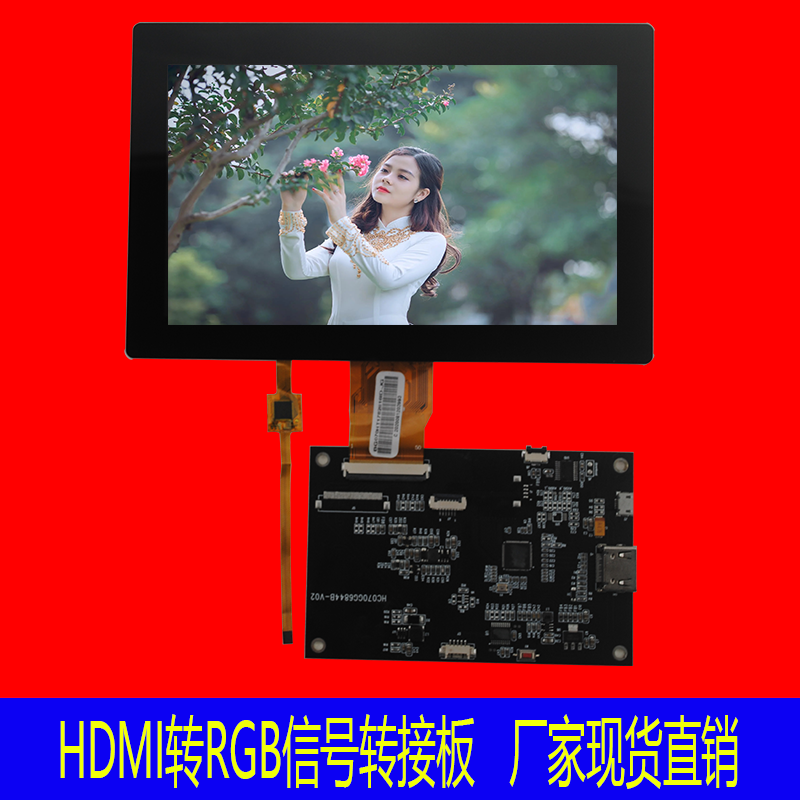

HDMI转RGB信号转接板HDMI-RGB Signal converter board

PRODUCT(产品名称)：HDMI-RGB Signal converter board

HDMI转RGB信号转接板

SAQCN P/N (型号)： HDMI To RGB Board

CUSTOMER(客户)：

CUSTOMER P/N(客户料号)：

DATE(日期)：

APPPROVED BY(客户确认栏)	NOTE(备注)
CUSTOMER SIGNATURE客户签章

1、基本功能描述：

【1】: 支持HDMI 1.4输入;

【2】: 支持RGB屏,输出信号为RGB888

【3】: 支持LVDS屏(1 port);

【4】: 支持电容触摸屏IIC转USB接口（支持FocalTech和Goodix触摸芯片;

【5】: 采用USB供电，输入电压为+5V;

【6】: 带背光驱动电路，电流可根据屏而定;

【7】： PCB板尺寸为：110 x 68 x1.6mm ;

【8】：本产品符合ROHS标准;

2、USB接口供电;

输入电压采取 Micro USB的通用接口供电方式，供电电压为5V，电流为

500mA

接口尺寸如下所示：

4、RGB 接口顺序定义，50Pin-0.5mm 间距，如下图：

Pin No.	Symbol	Function
1-2	LED_A	Backlight LED Power
3-4	LED_K	Backlight LED Ground
5	GND	Ground
6	VCOM	Common voltage (3.5V)
7	DVDD	Power for Digital Circuit (3.3V)
8	MODE	DE/SYNC mode selectMODE=1，DE mode；MODE=0，HSD/VSD mode；
9	DE	Data Enable Input.Active High to enable the data input bus under “DE MODE”.Normally pull low.
10	VSYNC	Vertical Sync Input for TTL mode.
11	HSYNC	Horizontal Sync Input for TTL mode.HSD=0,8bit;HSD=1,6bit
12-19	B7-B0	Blue Data Bit
20-27	G7-G0	Green Data Bit
28-35	R7-R0	Red Data Bit / DX0-DX7
36	GND	Ground
37	DCLK	Dot Data Clock.Select by “IFSEL” pin. TTL input mode IFSEL=0
38	GND	Ground
39	L/R	Left/Right selectionSHLR=0，shift left: last data=S1←S2←S3……←S1536=first data；SHLR=1，shift left: first data=S1→S2→S3……→S1536=fast data；
40	U/D	Up/Down selectionUPDN=0,STV2 output vertical start pulse and UD pin output logical “0” to Gate drive.UPDN=1,STV1 output vertical start pulse and UD pin output logical “1” to Gate drive.
41	VGH	Gate ON Voltage (18V)
42	VGL	Gate OFF Voltage (-6V)
43	AVDD	Power for Analog Circuit (9.6V)
44	RESET	global reset pin. Active low to enter reset state. suggest to connecting with an RC reset circuit for stability. Normally pull high.

Pin No.	Symbol	Function
45	NC	NC
46	VCOM	Common voltage
47	DITHB	Dithering functionDITHB=1,Enable internal dithering function;DITHB=0,Disable internal dithering function
48	GND	Ground
49-50	NC	NC
