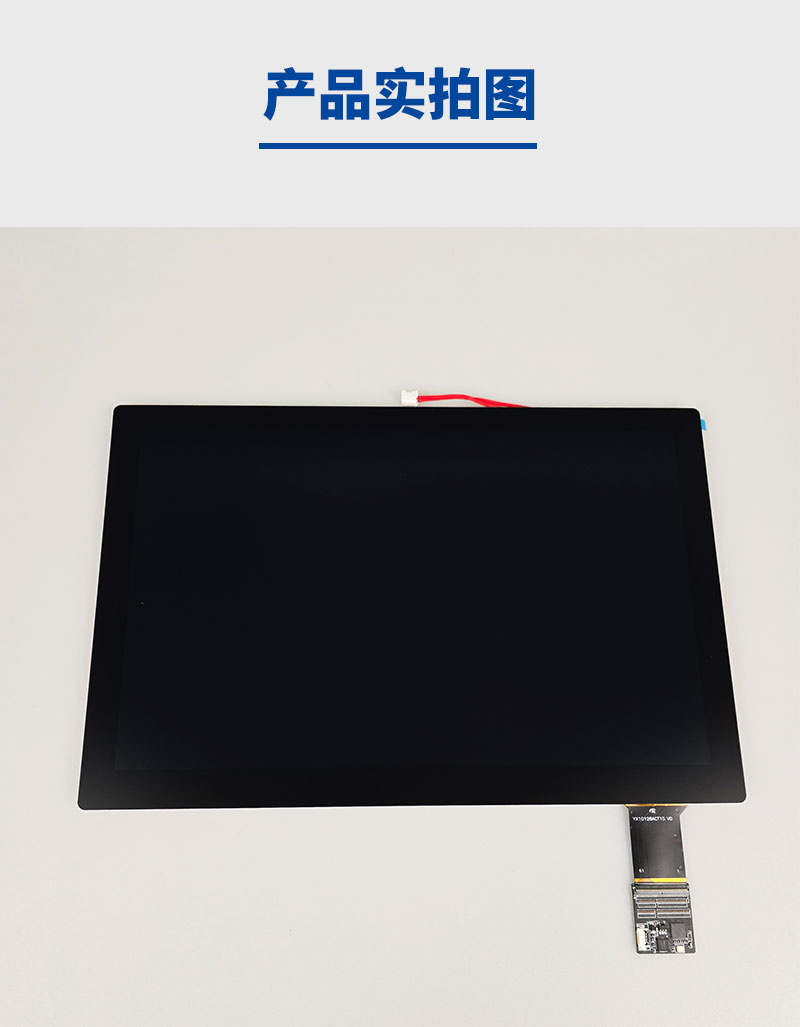

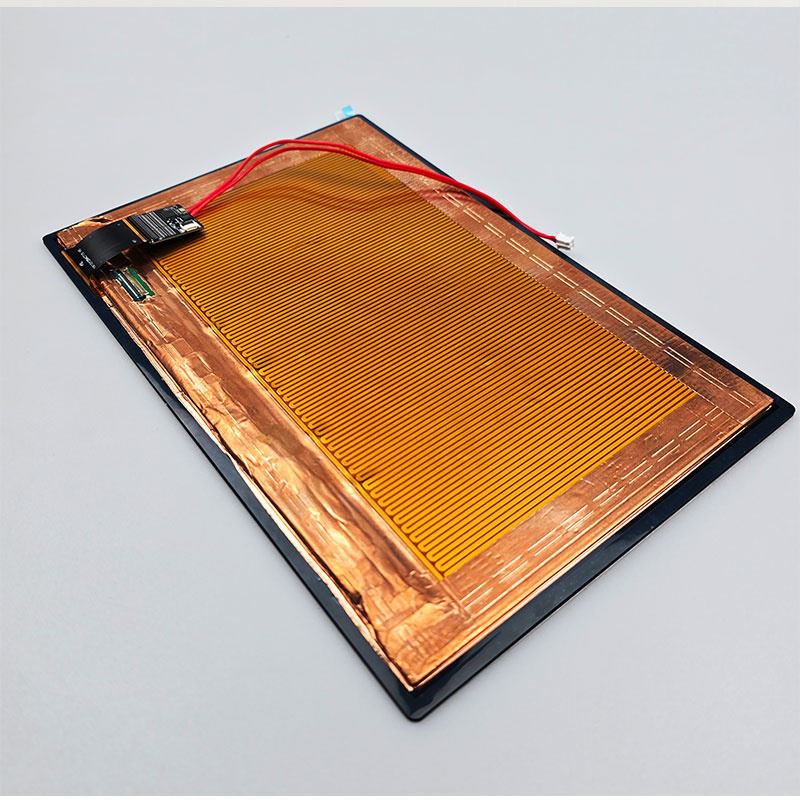

深圳宇锡10寸1000nit亮度EDP接口高端地面站屏幕总成

很多项目指标写到:

全国产显示屏大于等于10寸，分辨率大于等于1920*1080，带全国产触摸全贴合屏幕总成。单屏亮度大于等于1000nit，总成亮度带触摸带屏蔽大于等于700nit亮度，满足阳光下可视，EDP接口。

这个指标就是写的深圳宇锡YX10128ACTX系列。具体细节指标，具体细节实验参数，请有需求的客户莅临深圳宇锡工厂指导&交流！

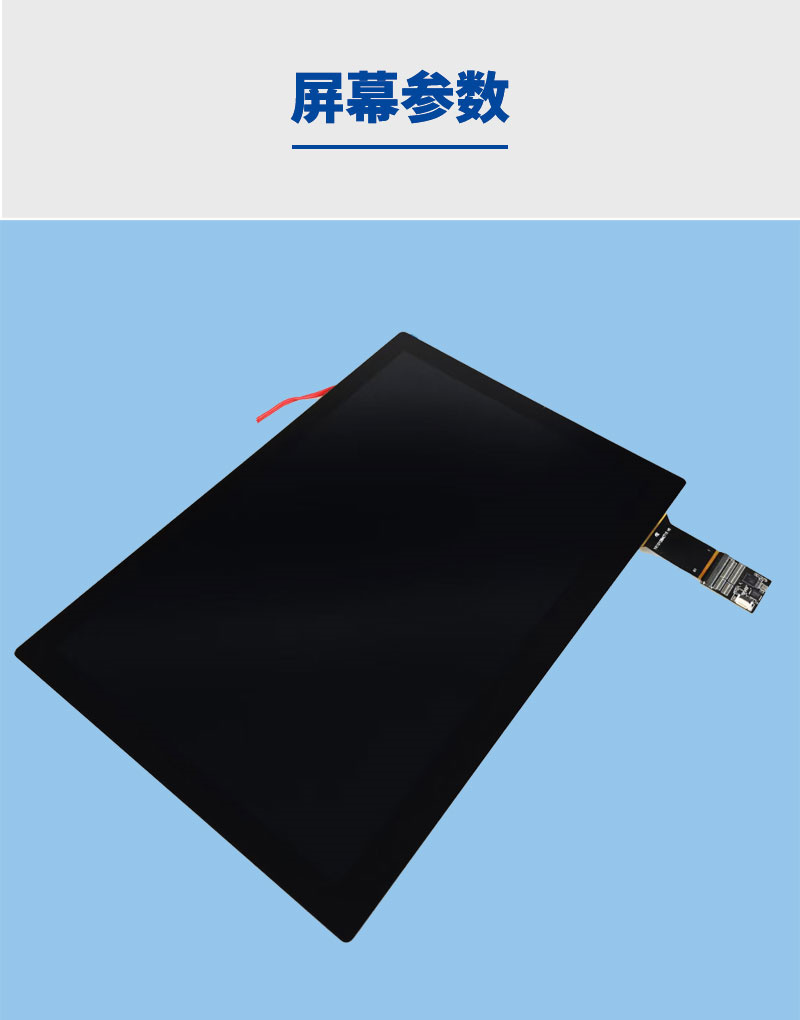

基本描述

LCD 类型 TFT-LCD /TRANSMISSIVE
模组尺寸 10.1 inch
点阵 1920(RGB) * 1200 Dot

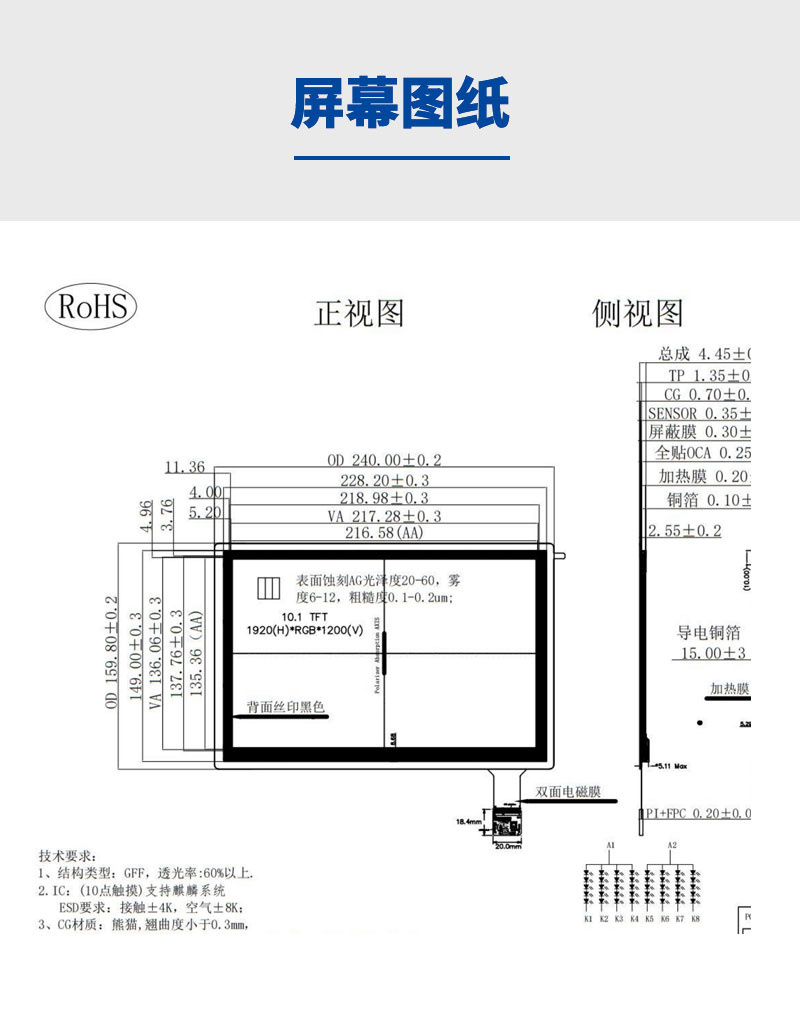

外形尺寸 240(W)* 159.8(H)*4.45(T) mm³
有效区域 216.576(W)* 135.36(H) mm²
像素 0.1128*0.1128 mm²
视角方向 All O’clock
背光类型 White LED – LCD Driver IC
LCD 驱动 IC /
接口类型 EDP interface

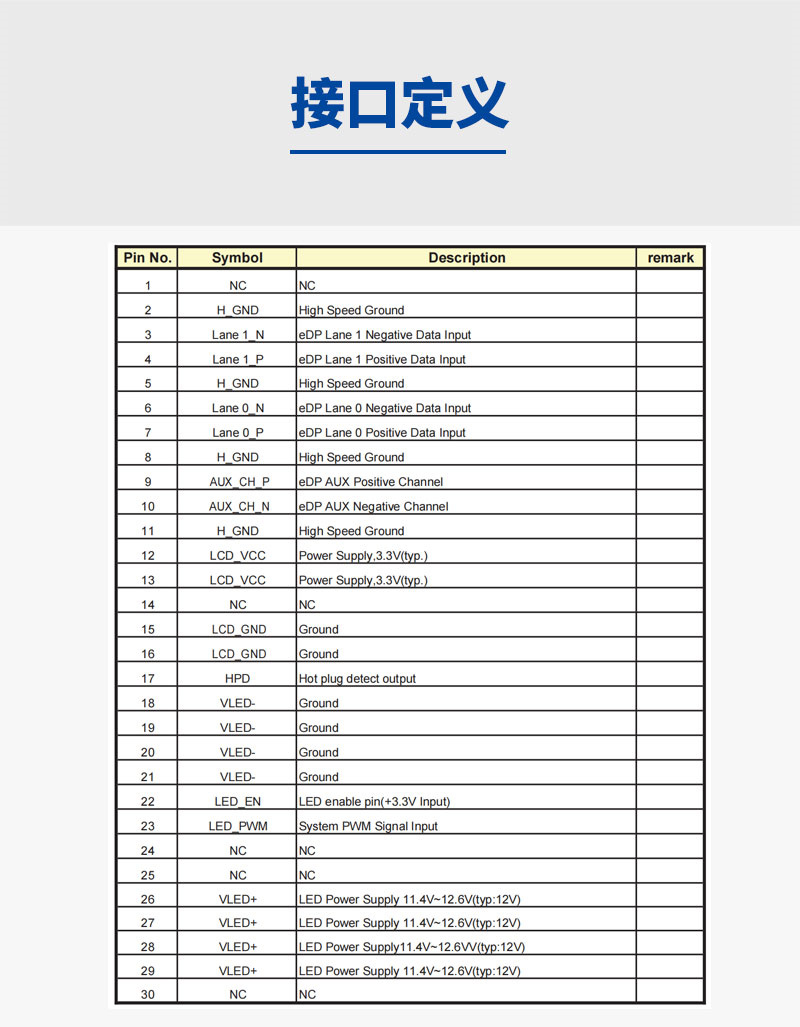

接口定义

1 NC NC
2 H_GND High Speed Ground
3 Lane 1_N eDP Lane 1 Negative Data Input
4 Lane 1_P eDP Lane 1 Positive Data Input
5 H_GND High Speed Ground
6 Lane 0_N eDP Lane 0 Negative Data Input
7 Lane 0_P eDP Lane 0 Positive Data Input
8 H_GND High Speed Ground
9 AUX_CH_P eDP AUX Positive Channel
10 AUX_CH_N eDP AUX Negative Channel
11 H_GND High Speed Ground
12 LCD_VCC Power Supply,3.3V(typ.)
13 LCD_VCC Power Supply,3.3V(typ.)
14 NC NC
15 LCD_GND Ground
16 LCD_GND Ground
17 HPD Hot plug detect output
18 VLED- Ground
19 VLED- Ground
20 VLED- Ground
21 VLED- Ground
22 LED_EN LED enable pin(+3.3V Input)
23 LED_PWM System PWM Signal Input
24 NC NC
25 NC NC
26 VLED+ LED Power Supply 11.4V~12.6V(typ:12V)
27 VLED+ LED Power Supply 11.4V~12.6V(typ:12V)
28 VLED+ LED Power Supply11.4V~12.6VV(typ:12V)
29 VLED+ LED Power Supply 11.4V~12.6V(typ:12V)
30 NC NC
