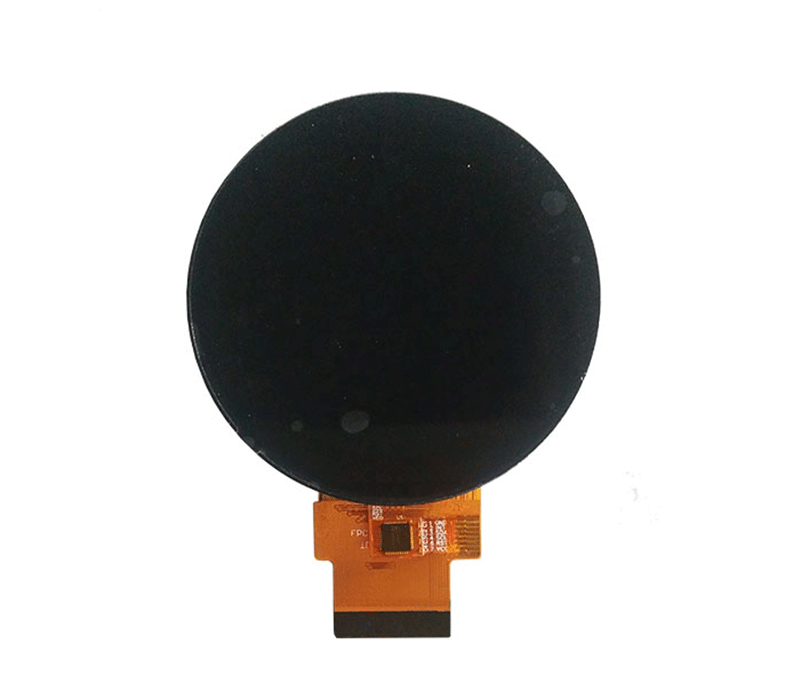

2.1寸液晶屏圆型屏定制480* 480适用于智能手表屏

.1寸液晶屏圆型屏定制480*

宇锡明星产品之一,2.1寸液晶屏,圆型液晶屏的分辨率是480(RGB) * 480,视角方向 All view O’clock,接口类型 SPI+18BIT RGB interface -等等,具体想了解更多的参数,可以联系我们的业务员发个规格书过来看就行,产品比较的适用于用应用在智能手表上面.

我们的仓库有非常多的现货,供货稳定,目前日出货量在10K左右,产品质量也很好.

另外我们也支持2.1寸圆形液晶屏定制,有需要的老板,可以拿出你的手机,来联系我,把你的定制需求去说出来,我们来帮你定制屏.

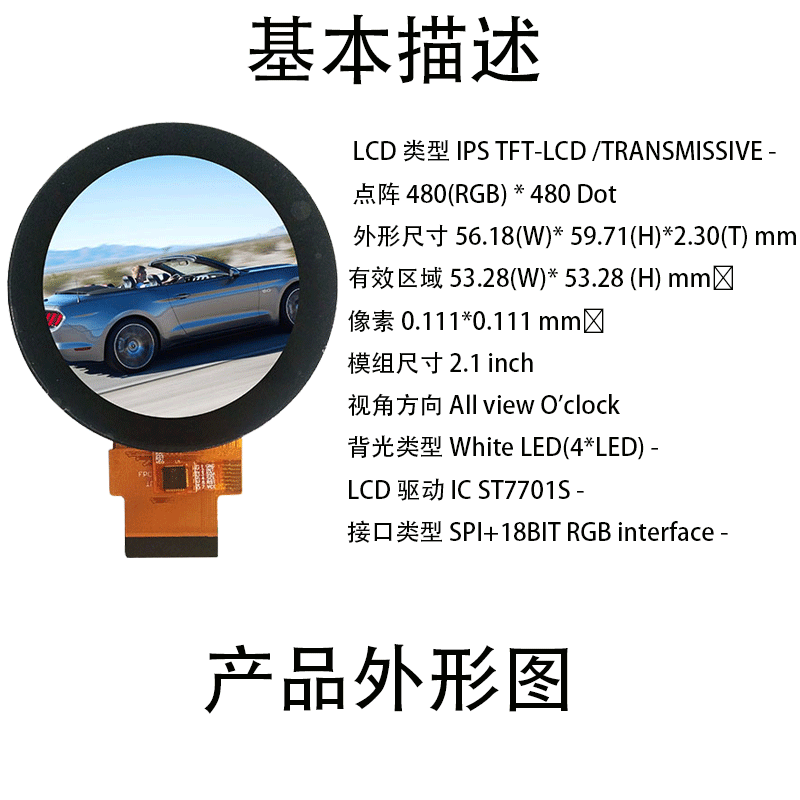

2.1寸圆形液晶屏参数

LCD 类型 IPS TFT-LCD /TRANSMISSIVE –
点阵 480(RGB) * 480 Dot

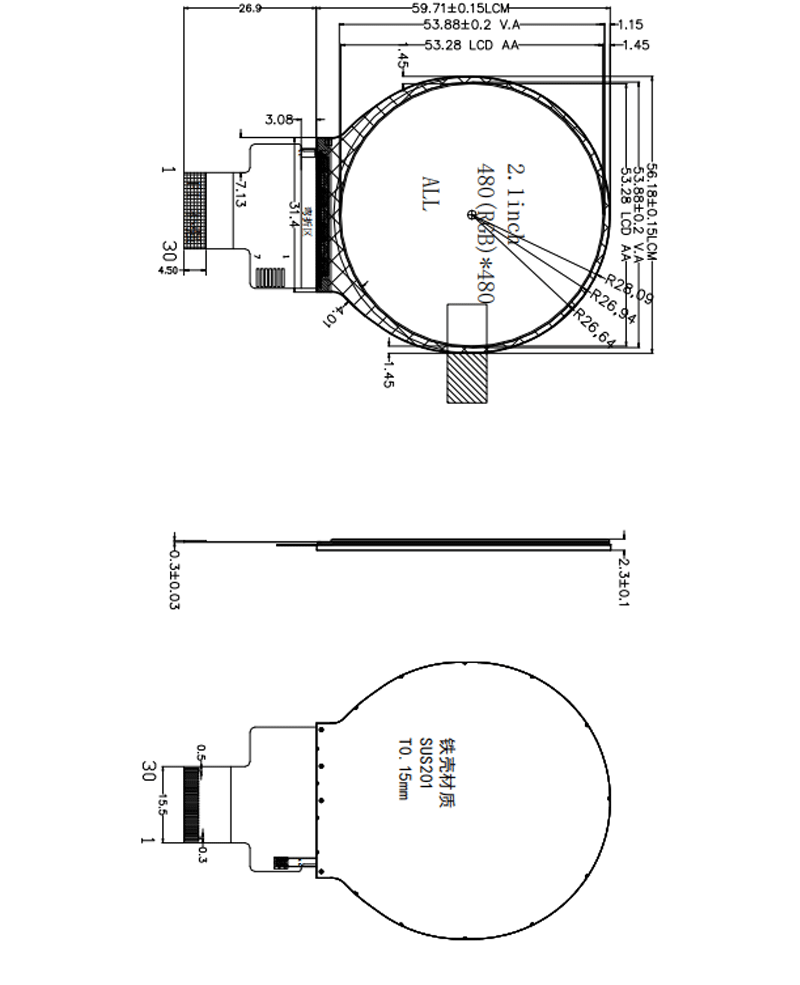

外形尺寸 56.18(W)* 59.71(H)*2.30(T) mm³
有效区域 53.28(W)* 53.28 (H) mm²
像素 0.111*0.111 mm²
模组尺寸 2.1 inch
视角方向 All view O’clock
背光类型 White LED(4*LED) –
LCD 驱动 IC ST7701S –
接口类型 SPI+18BIT RGB interface –

接口定义

1 LED A LED ANODE
2 LED K LED CATHODE
3 LED K LED CATHODE
4 GND Ground
5 VCI Power supply
6 RESET Reset Signal ,Active Low
7 TE Tearing effect output pin to synchronize MPU to frame
writing
8 PWM The PWM frequency output for LCD driver control.
9 SDA SPI Data signal
10 SCK SPI Clock signal
11 CS SPI Chip select signal
12 PCLK RGB dot clock signal
13 DE RGB data enable signal
14 VSYNC RGB frame synchronizing signal
15 HSYNC RGB line synchronizing signal
16~33 DB0~DB17 RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN
LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB)
34 GND Ground
35 TP_INT Touch Interrupt
36 TP_SDA Touch IIC Data signal
37 TP_SCL Touch IIC Clock signal
38 TP_RESET Touch Reset Signal
39 TP_VCI Touch Power supply
40 GND Ground
