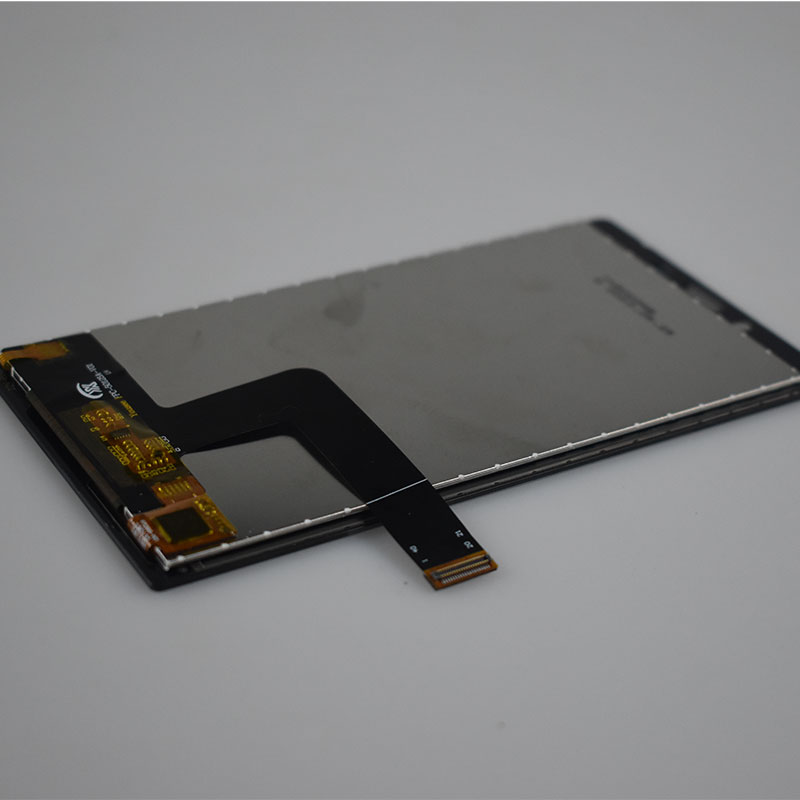

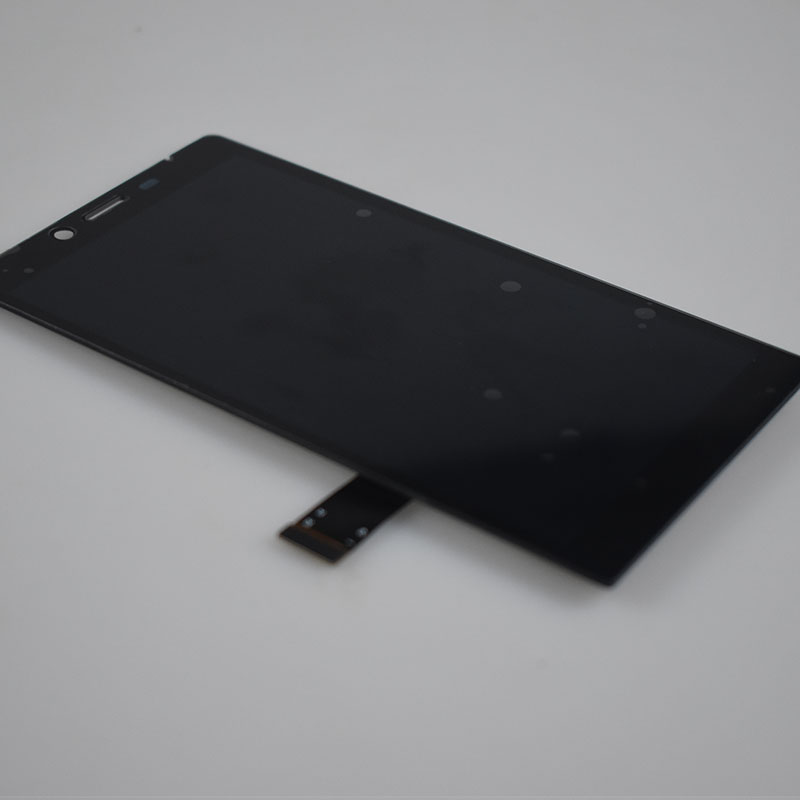

宇锡5.0寸高分辨率1080P，卫星手持机，摄像机，无人机遥控器专用屏幕

才能而性格稳重的人，必定属于大才之人;

有智慧而心平气和的人，必定属于大智之人。

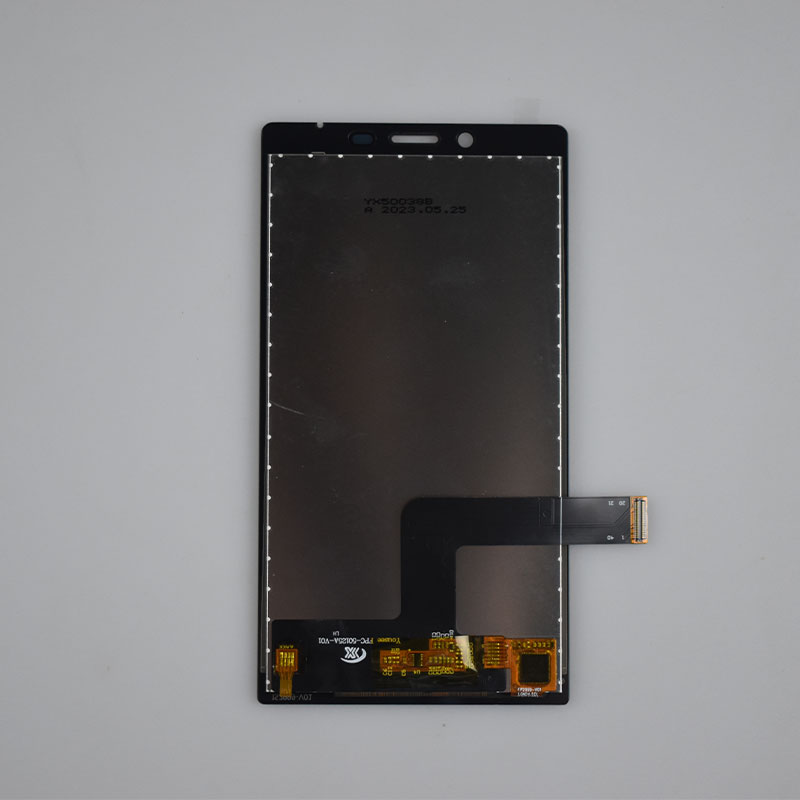

宇锡科技5.0寸1080*1920屏幕，可以定制触摸，定制屏蔽膜，定制FPC，定制高亮阳光下可视。

宇锡科技5.0FHD广泛运用于，卫星电话，三防手持，摄像机监控器，行业PDA，医疗产品，等诸多领域。

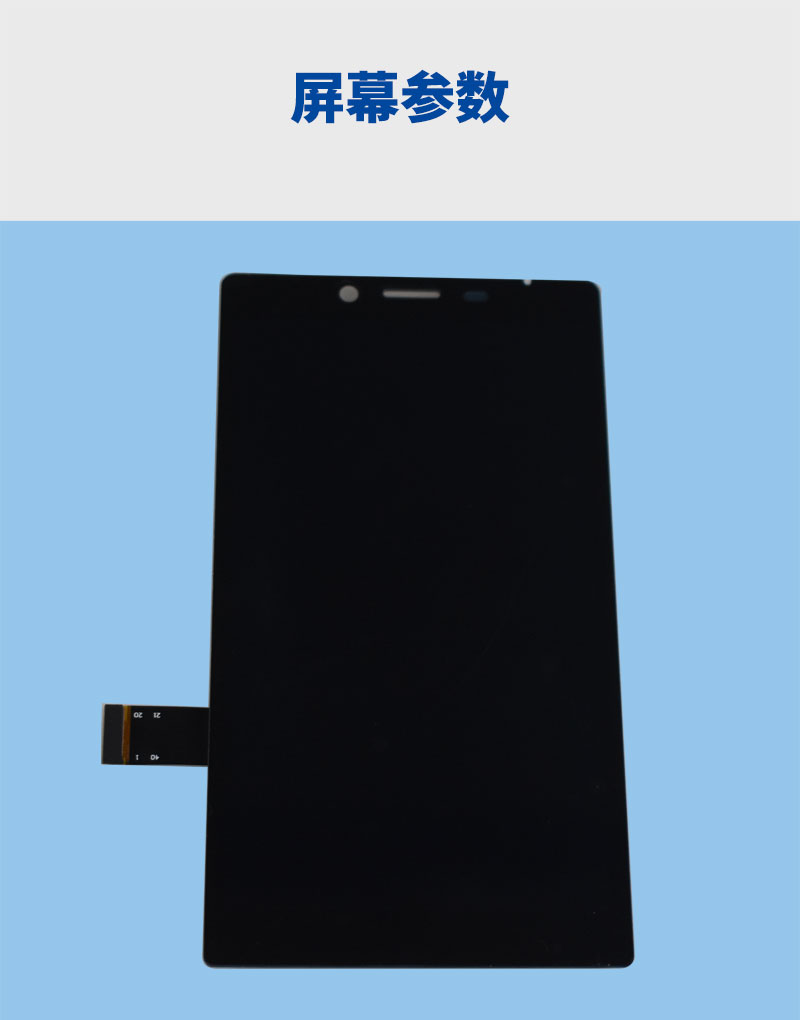

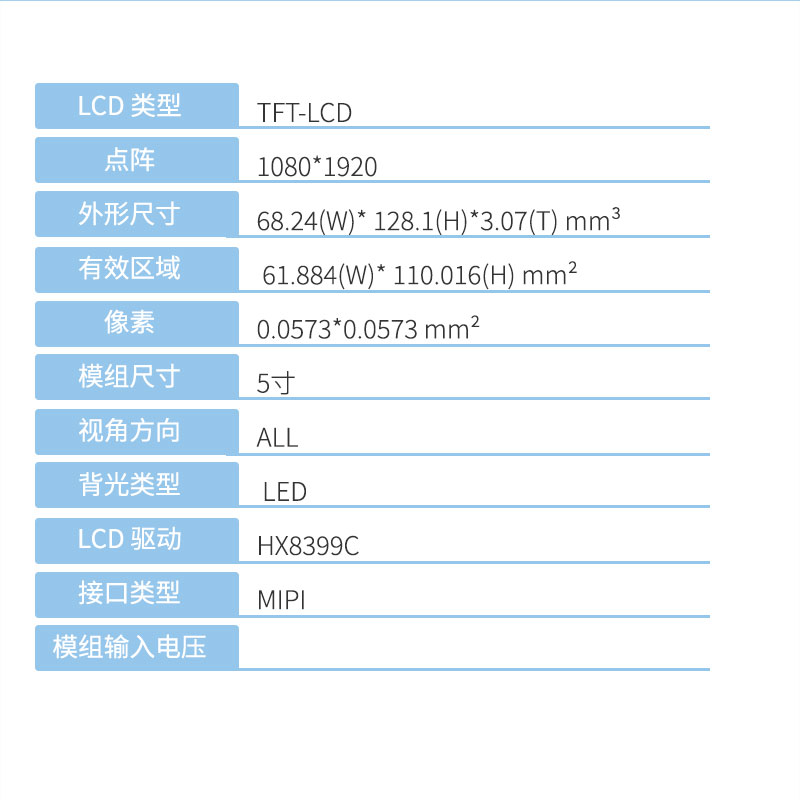

基本描述

LCD 类型 TFT-LCD /TRANSMISSIVE
模组尺寸 5.0 inch
点阵 1080(RGB) * 1920 Dot

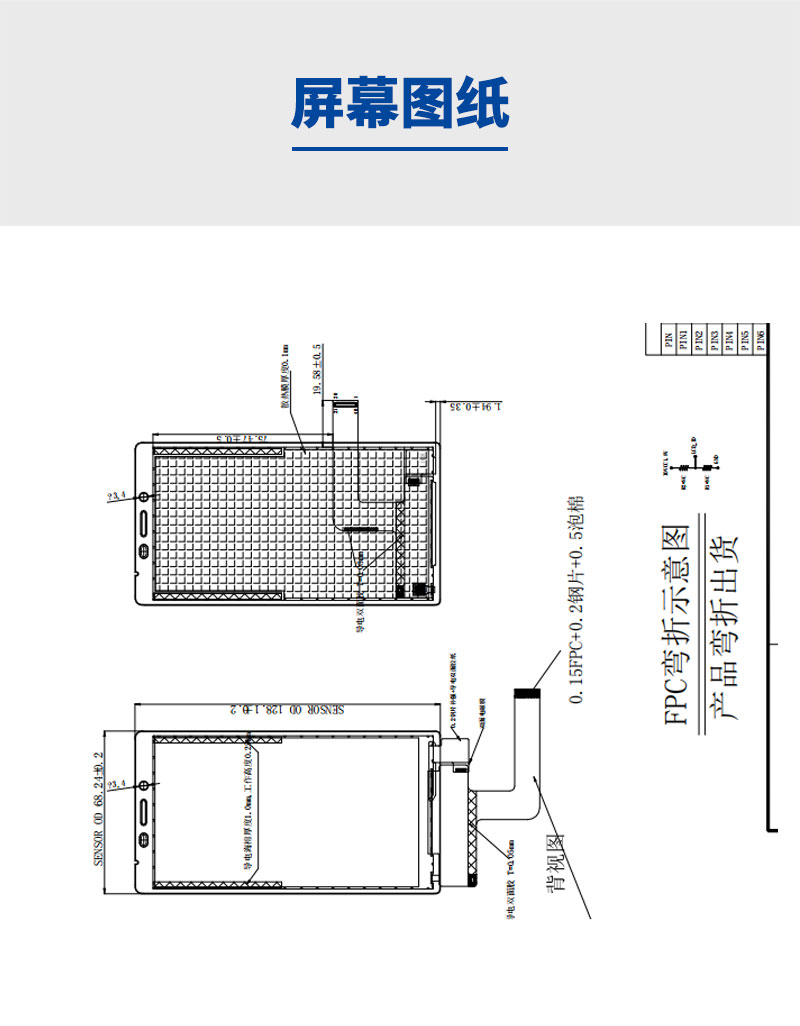

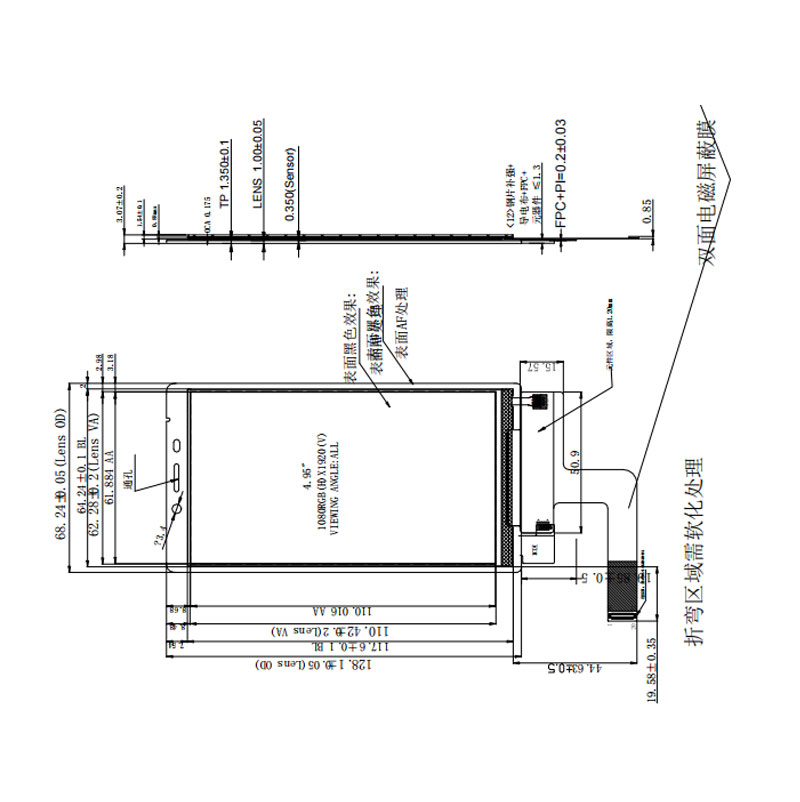

外形尺寸 68.24(W)* 128.1(H)*3.07(T) mm³
有效区域 61.884(W)* 110.016(H) mm²
像素 0.0573*0.0573 mm²
视角方向 ALL O’clock
背光类型 White LED
LCD 驱动 IC HX8399C
接口类型 MIPI

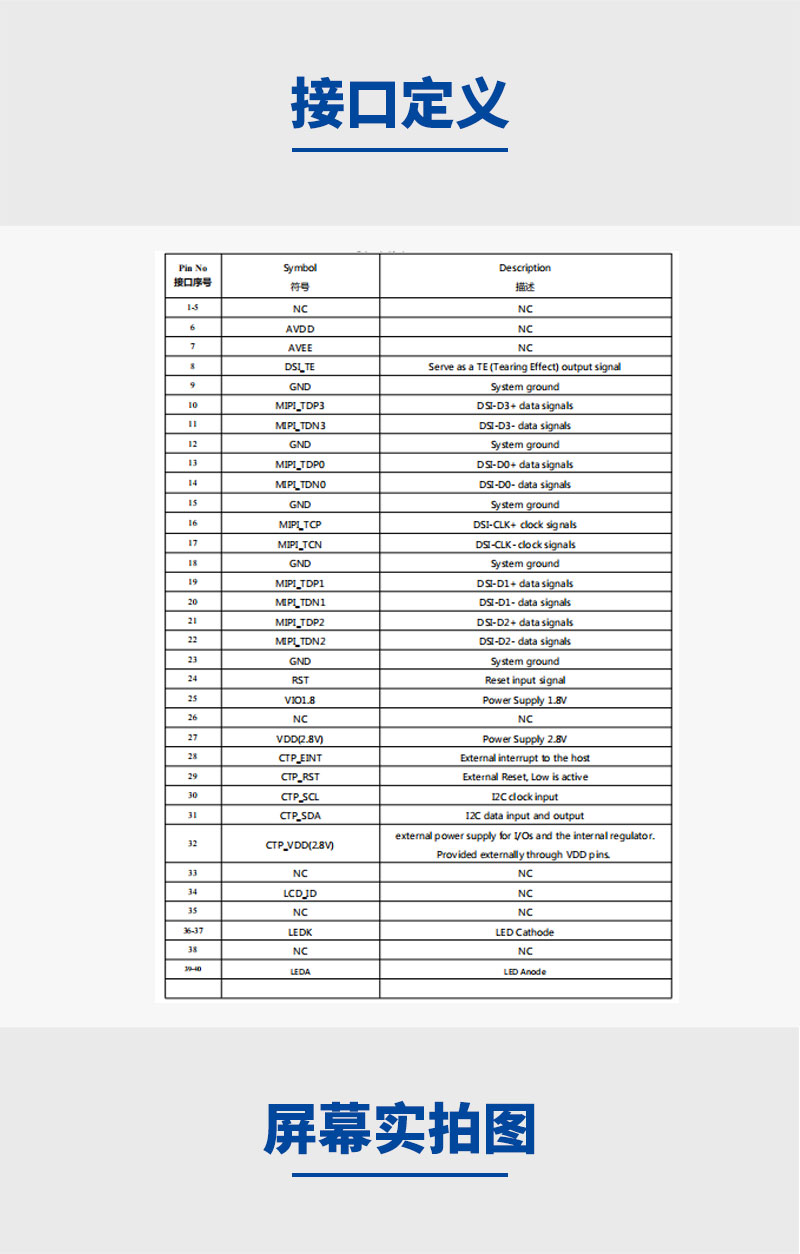

接口定义

1-5 NC NC
6 AVDD NC
7 AVEE NC
8 DSI_TE Serve as a TE (Tearing Effect) output signal
9 GND System ground
10 MIPI_TDP3 DSI-D3+ data signals
11 MIPI_TDN3 DSI-D3- data signals
12 GND System ground
13 MIPI_TDP0 DSI-D0+ data signals
14 MIPI_TDN0 DSI-D0- data signals
15 GND System ground
16 MIPI_TCP DSI-CLK+ clock signals
17 MIPI_TCN DSI-CLK- clock signals
18 GND System ground
19 MIPI_TDP1 DSI-D1+ data signals
20 MIPI_TDN1 DSI-D1- data signals
21 MIPI_TDP2 DSI-D2+ data signals
22 MIPI_TDN2 DSI-D2- data signals
23 GND System ground
24 RST Reset input signal
25 VIO1.8 Power Supply 1.8V
26 NC NC
27 VDD(2.8V) Power Supply 2.8V
28 CTP_EINT External interrupt to the host
29 CTP_RST External Reset, Low is active
30 CTP_SCL I2C clock input
31 CTP_SDA I2C data input and output
32 CTP_VDD(2.8V)
external power supply for I/Os and the internal regulator. Provided externally through VDD pins.
33 NC NC
34 LCD_ID NC
35 NC NC
36-37 LEDK LED Cathode
38 NC NC
39-40 LEDA LED Anode
