屏幕简介

今天是个好日子,2月8号,初八 ,我们宇锡(Yousee)科技开工。

阔别十来天的战友相聚一堂,继续坚持全球工控市场定制屏幕的事业。我们工程老大波总今天给大家推荐的是PDA网
红系列:YX60018A系列;6寸 720*1440分辨率,mipi接口,带IC端玻璃双边切角的IPS屏幕。该屏幕比例18:9,适合
单手操作。

该玻璃资源长期稳定供应,适合行业类PDA产品。IC选择的是ILI9881C-04T/05T,也是性能和供应稳定的经典。同时
可以根据客户要求定制触摸全贴合总成配套出货。

有相关需求联系宇锡邹生:
15818552076

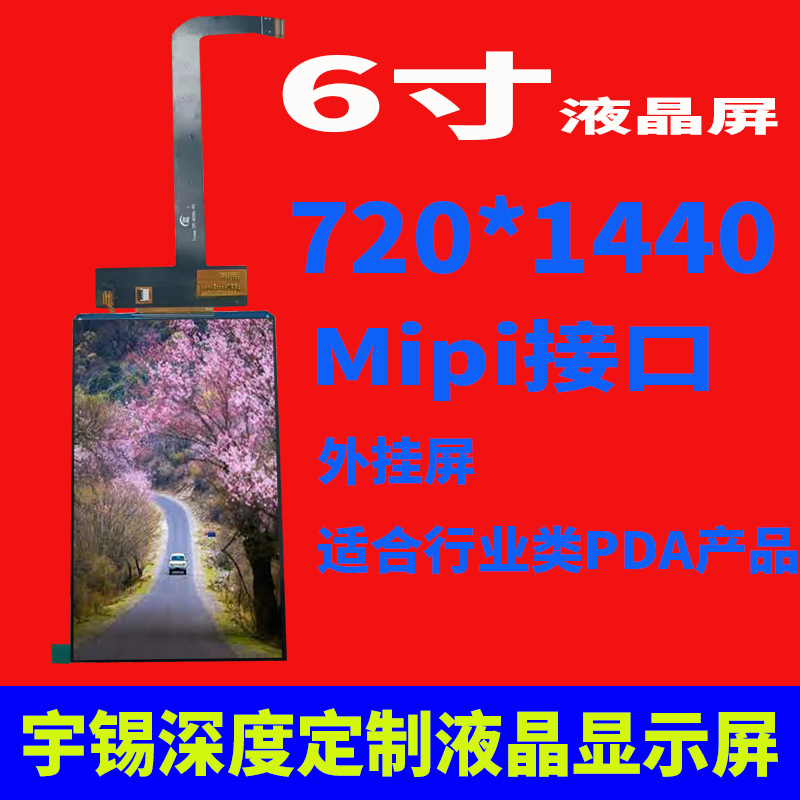

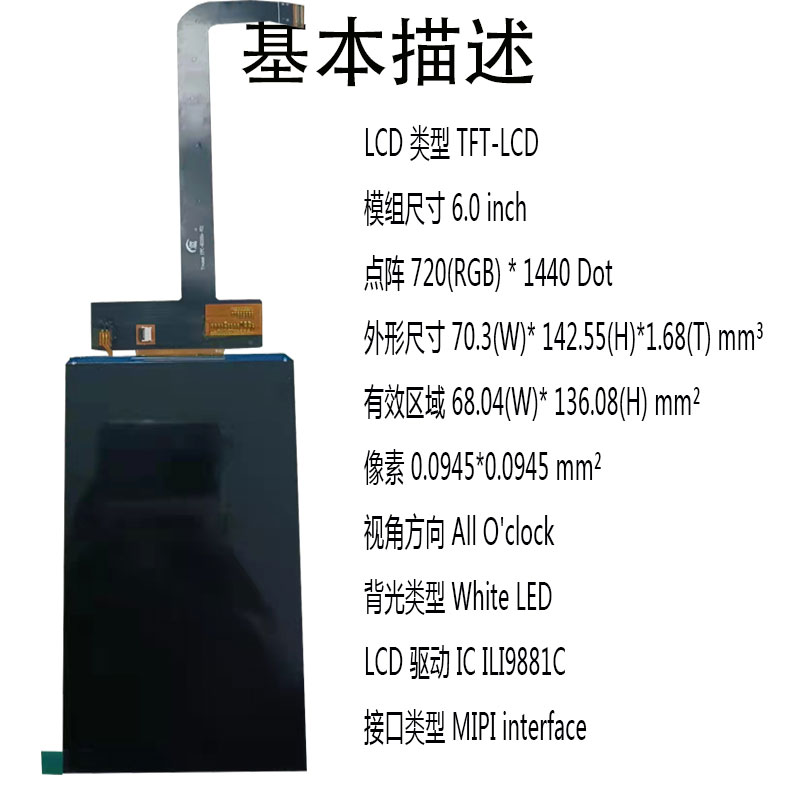

屏幕参数

LCD 类型 TFT-LCD
模组尺寸 6.0 inch
点阵 720(RGB) * 1440 Dot

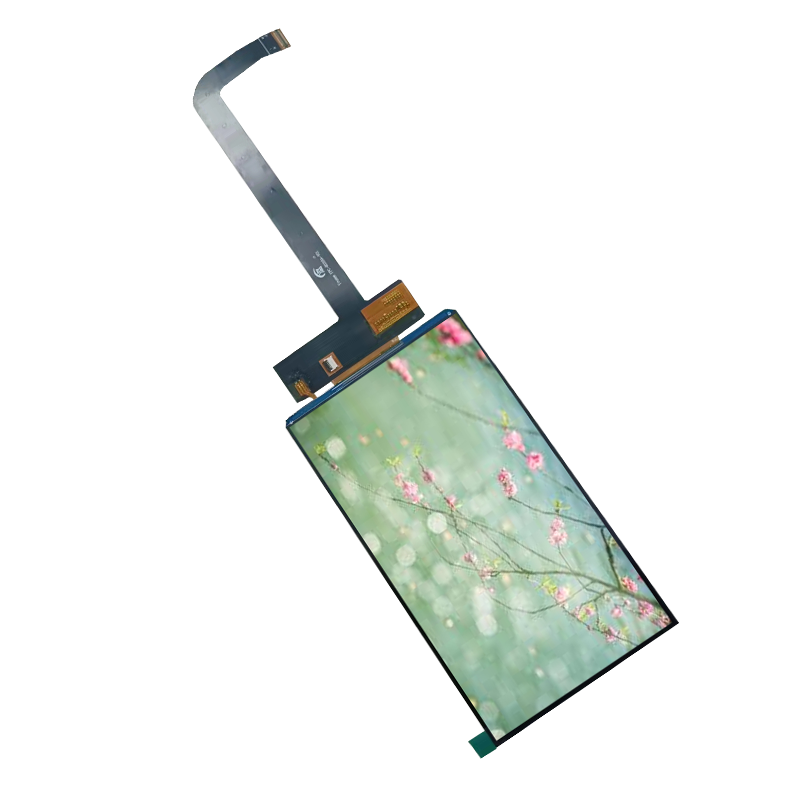

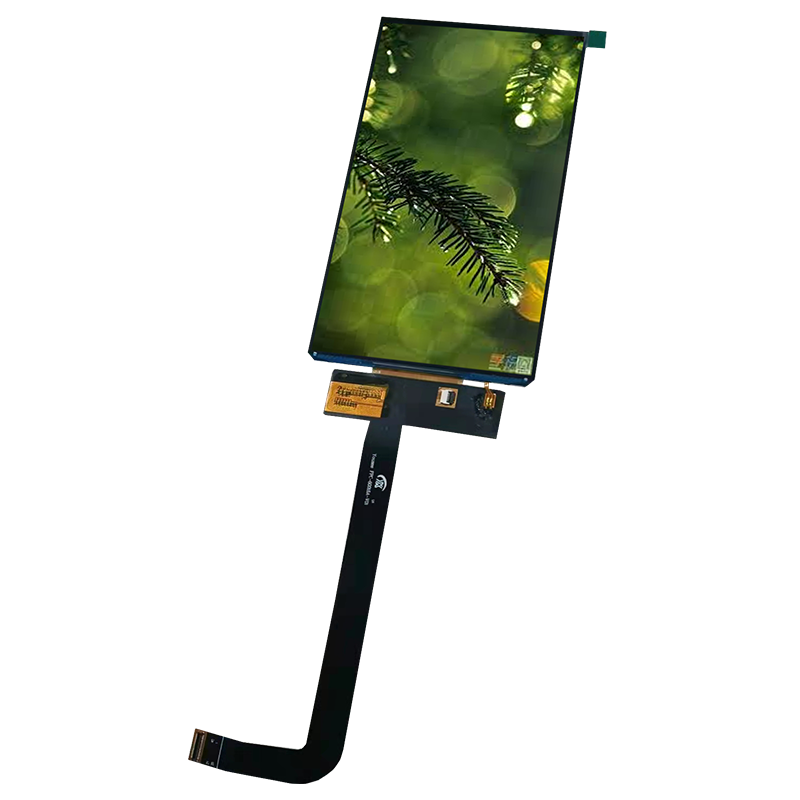

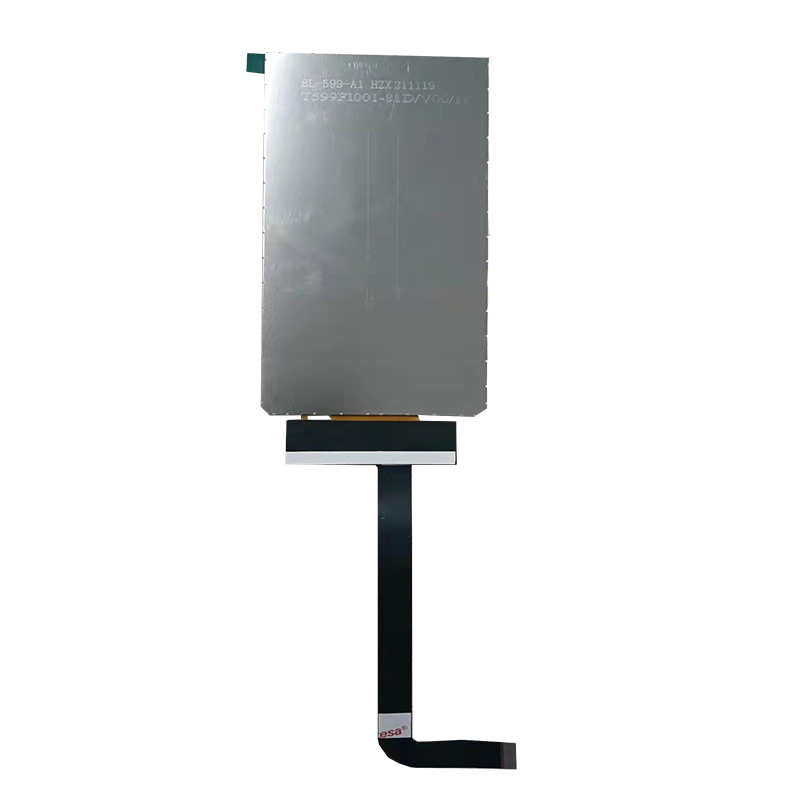

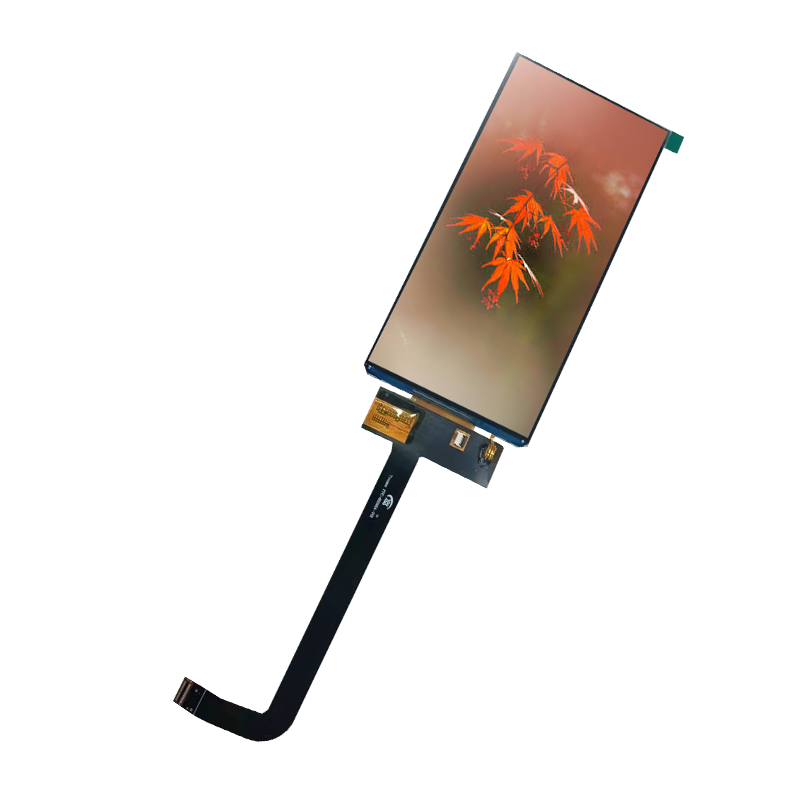

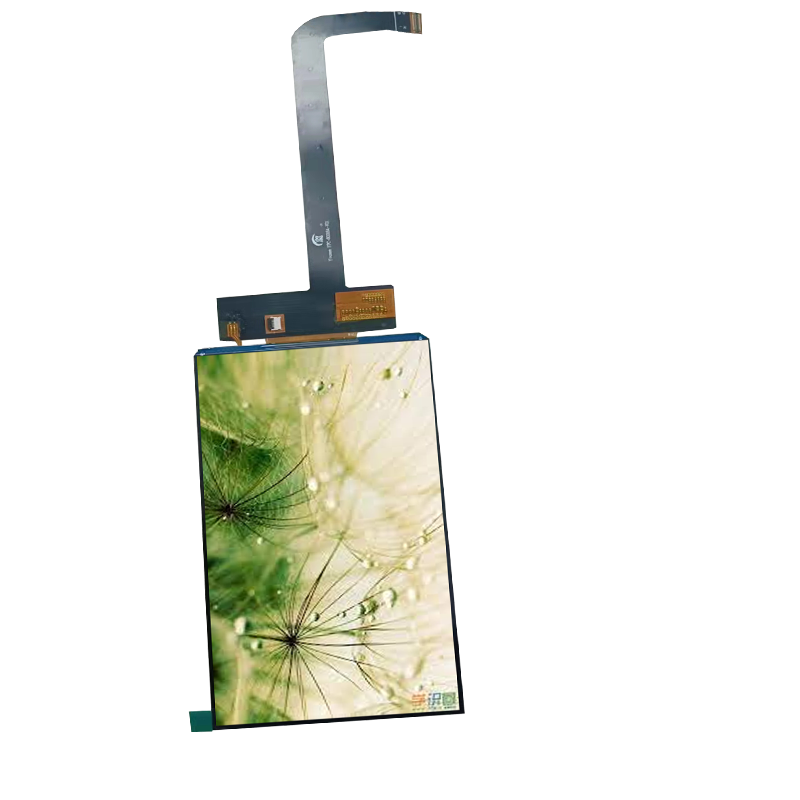

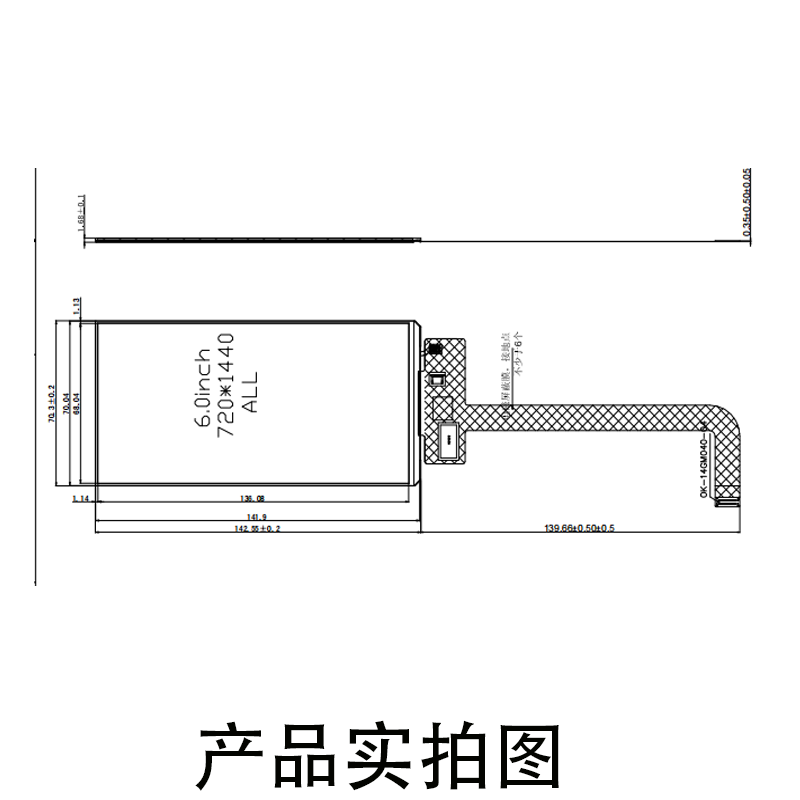

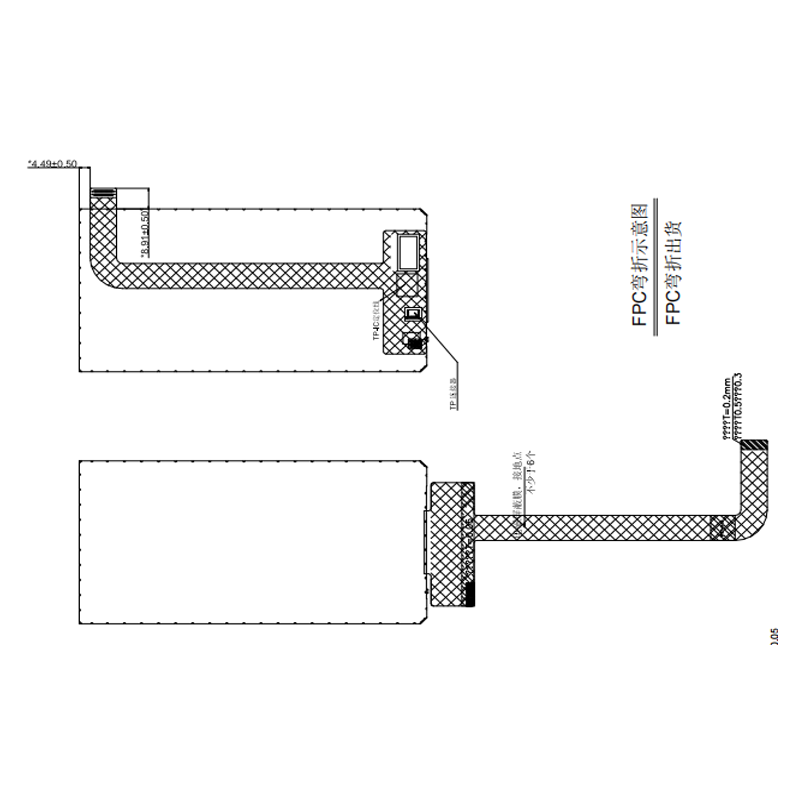

外形尺寸 70.3(W)* 142.55(H)*1.68(T) mm³
有效区域 68.04(W)* 136.08(H) mm²
像素 0.0945*0.0945 mm²
视角方向 All O’clock
背光类型 White LED
LCD 驱动 IC ILI9881C
接口类型 MIPI interface

引脚定义

1 LCD_VDD2.8V Power Supply 2.8V
2-7 NC NC
8 TE TE PIN
9 GND System ground
10 D3P DSI-D3+ data signals
11 D3N DSI-D3- data signals
12 GND System ground
13 D0P DSI-D0+ data signals
14 D0N DSI-D0- data signals
15 GND System ground
16 CLKP DSI-CLK+ clock signals
17 CLKN DSI-CLK- clock signals
18 GND System ground
19 D1P DSI-D1+ data signals
20 D1N DSI-D1- data signals
21 D2P DSI-D2+ data signals
22 D2N DSI-D2- data signals
23 GND System ground
24 REST Reset input signal
25 VDDI Power Supply 1.8V Voltage
26 AVEE Power Supply -5V
27 LCD_VDD2.8V Power Supply 2.8V
28 TP_INT TP_INT
29 TP_RST TP_RST
30 TP_SCL TP_SCL
31 TP_SDA TP_SDA
32 TP_VDD TP_VDD
33 AVDD Power Supply +5V
34 LCD_ID LCD_ID
35 NC NC
36-37 LEDK LED Cathode
38 NC NC
39-40 LEDA LED Anode
