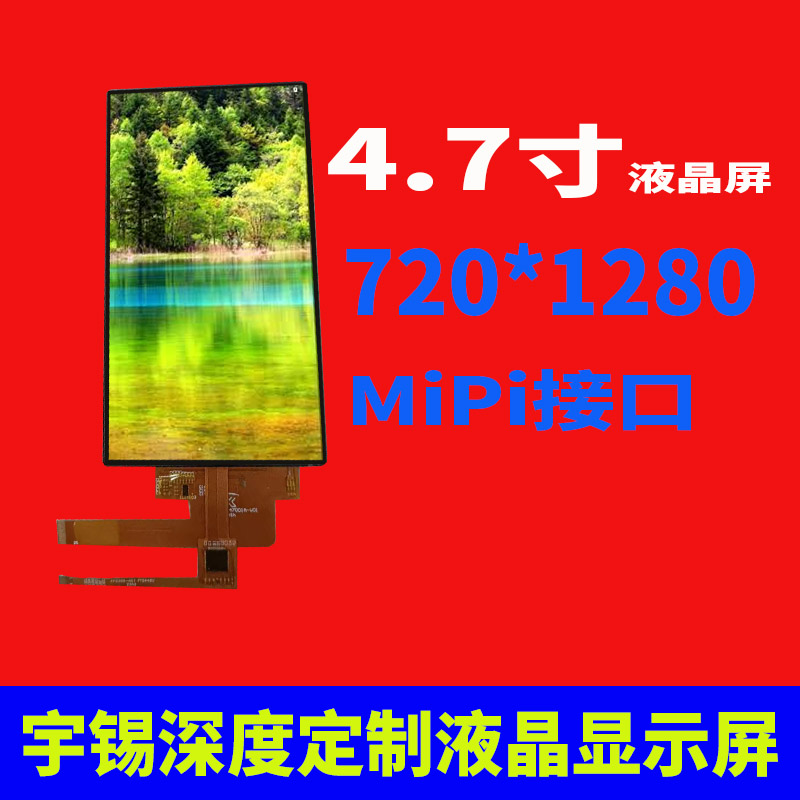

4.7寸720*1280MiPi接口ILI9881C IC带G+FF触摸总成用于新冠病毒身份信息确认PDA

.7寸720*1280MiPi接口ILI9881C

屏幕简介

2019年冬天,新冠病毒席卷全球。这三年,病毒此起彼伏,不断威胁我们人类的生命。机场,高铁站,公交车站,高级酒店等人口流通大的地方开始使用一款身份证识别PDA,用于动态查验我们的健康码,避免高危人群截图过时的或者假的健康码蒙哄过关。危害社会。

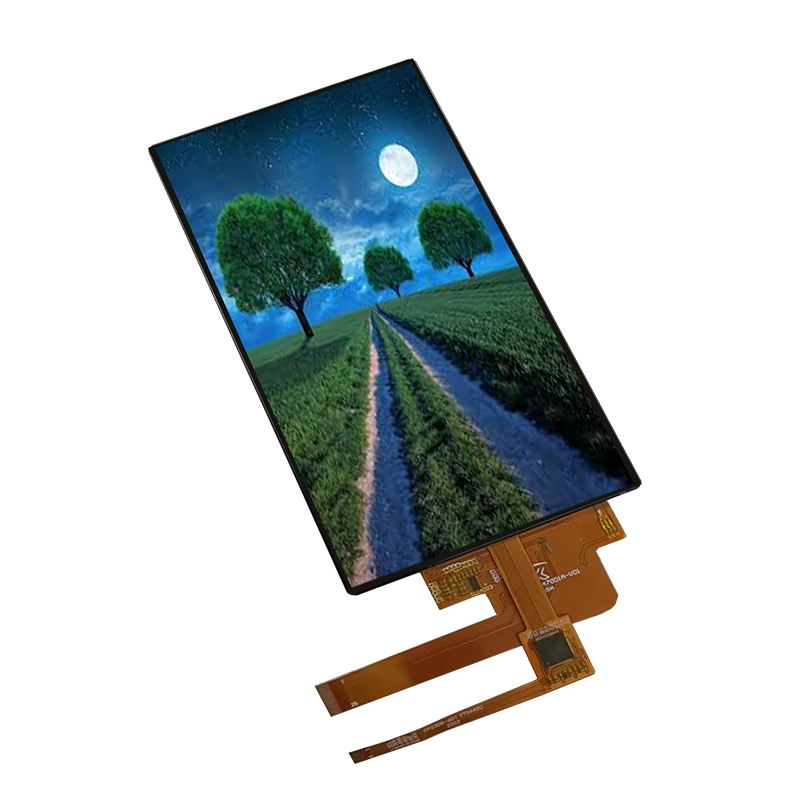

该PDA使用的宇锡(Yousee)YX47001ACT屏幕,Boe的玻璃配ILi9881C的IC,720*1280分辨率,Mipi接口,4通道,全贴合G+FF,彩虹盖板玻璃的触摸,全贴合总成。透过Tp的亮度是420Nit。

这款屏幕带Tp总成接触过静电5k,隔空过静电9k。避免抗疫人员在冬季羽绒服等高静电环境中使用出现白屏或者花屏。该总成还适用于各种场景的PDA手持机,机器人面部显示,别墅入户面部识别,考勤机,工控显示等诸多场景。

有需要的客户联系,宇锡(Yousee)产品家,邹专家:15818552076

屏幕参数

LCD 类型 TFT-LCD
模组尺寸 4.7 inch
点阵 720(RGB) * 1280 Dot
外形尺寸 62.88(W)*116.18(H)*2.85(T) mm³
有效区域 58.7(W)* 103.9(H) mm²
像素 0.0815*0.0811 mm²
视角方向 All O’clock
背光类型 White LED
LCD 驱动 IC ILI9881C
接口类型 MIPI interface

接口定义

1 GND System ground
2 LEDA LED Anode
3 LEDK LED Cathode
4 GND LED Cathode
5 VCC Power Supply 2.8V
6 GND System ground
7 IOVCC Power Supply 1.8V
8 RST -This signal will reset the device and it must be applied to properly initialize the chip.
9 TE TE pin
10 NC System ground
11 GND System ground
12 CN DSI-CLK- clock signals
13 CP DSI-CLK+ clock signals
14 GND System ground
15 D0N DSI-D0- data signals
16 D0P DSI-D0+ data signals
17 GND System ground
18 D1N DSI-D1- data signals
19 D1P DSI-D1+ data signals
20 GND System ground
21 D2N DSI-D2- data signals
22 D2P DSI-D2+ data signals
23 GND System ground
24 D3N DSI-D3- data signals
25 D3P DSI-D3+ data signals
