0.39寸液晶屏分辨率1920 x1080 MIPI FHD 60pin OLED头戴式显示器

发布时间:2021/09/01 TFT LCD 浏览次数:120

商品原价768元样品价600元

【显示尺寸】:0.39寸液晶屏
【分辨率】:1920 x1080
【接口】:MIPI
【亮度】:400
【引脚】: 60pin
【定制】:支持定制开发
【型号】:VX039-FHP-NH0

详细参数

概述

VX039-FHP-NH0/VX039FHM-NN0是0.39英寸(1厘米)对角线,FHD分辨率(1920 x1080),有源矩阵基于单晶硅背板的彩色OLED(有机发光显示)面板模块。像素电路和驱动IC集成在硅背板上,以获得紧凑的尺寸和极低的功耗消耗。

1.0 cm(0.39型)有源矩阵彩色OLED面板模块,需要产品规格书的朋友,了解具体报价,需要大量采购的朋友,需要液晶屏的朋友,欢迎和我司的业务员进行合作对接.

宇锡 邹生:15818552076 微信同号
地址:深圳西乡簕竹角鸿竹雍启C栋

应用

虚拟现实应用(AR/VR)、头戴式显示器、近眼显示器等

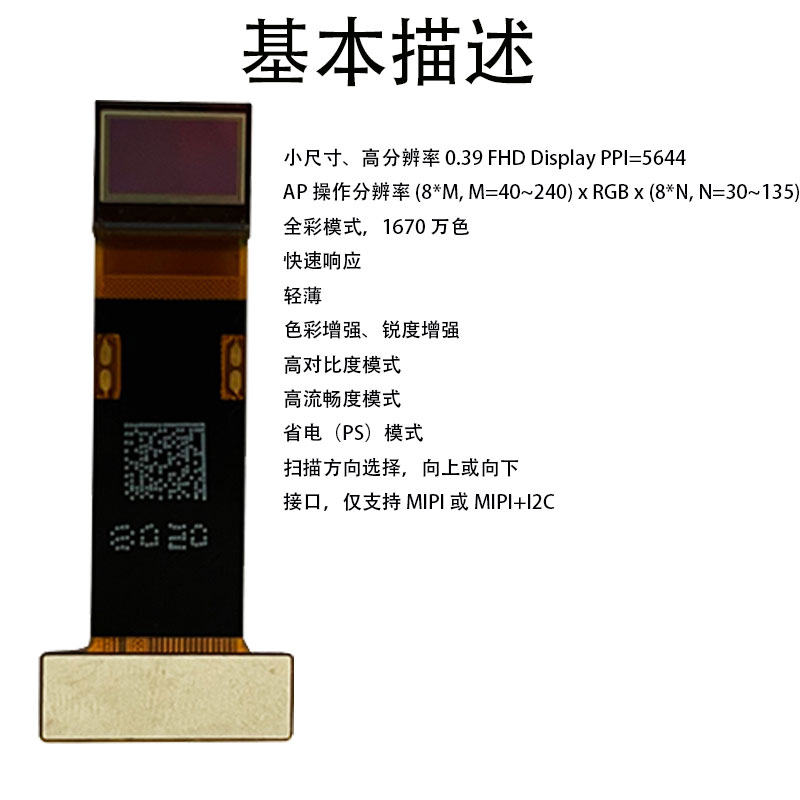

特点

小尺寸、高分辨率 0.39 FHD Display PPI=5644
AP 操作分辨率 (8*M, M=40~240) x RGB x (8*N, N=30~135)
全彩模式,1670 万色
快速响应
轻薄
色彩增强、锐度增强
高对比度模式
高流畅度模式
省电(PS)模式
扫描方向选择,向上或向下
接口,仅支持 MIPI 或 MIPI+I2C

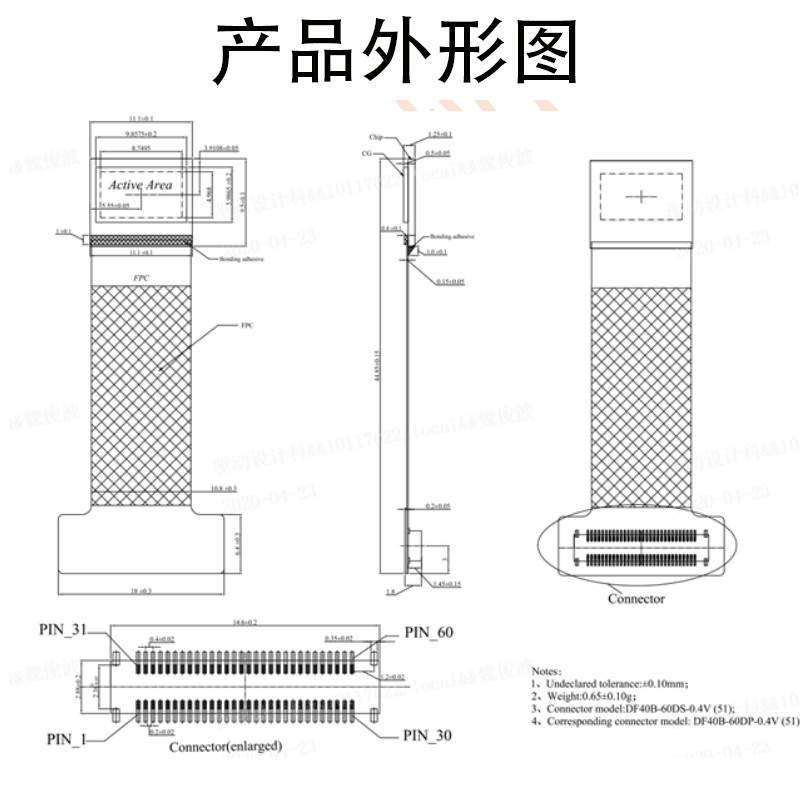

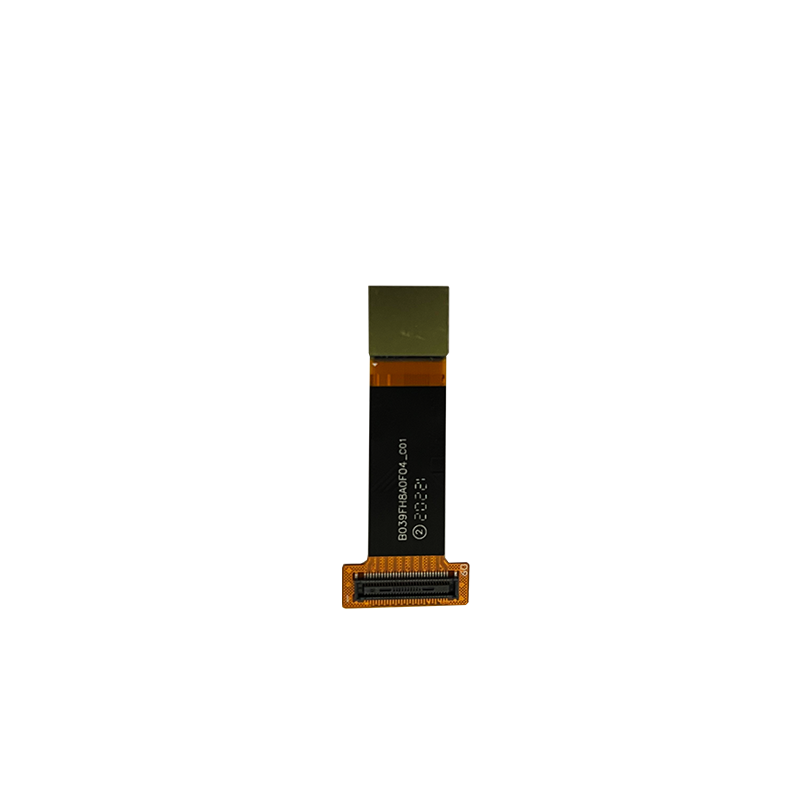

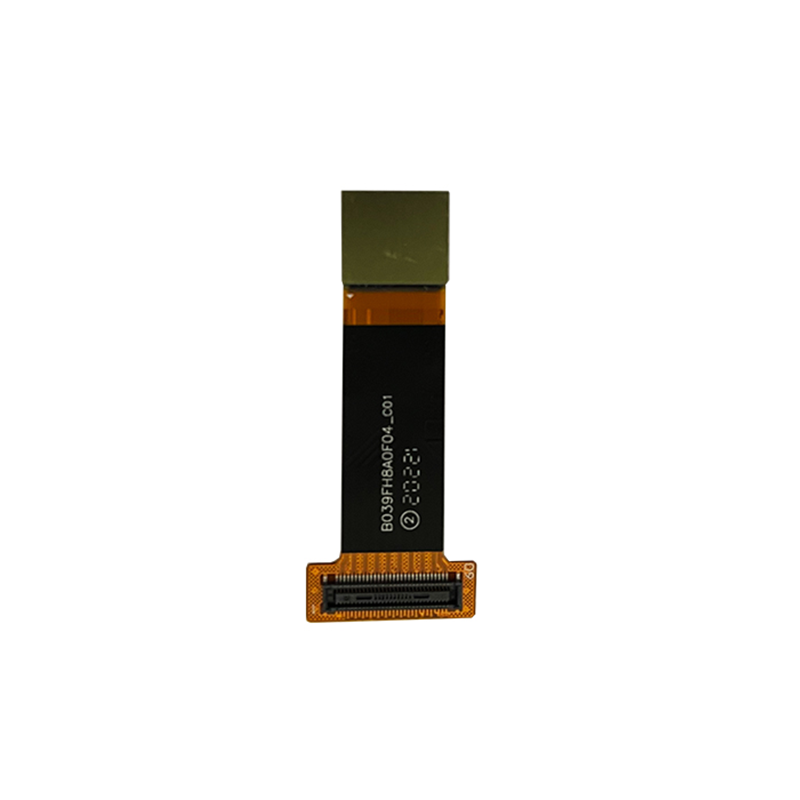

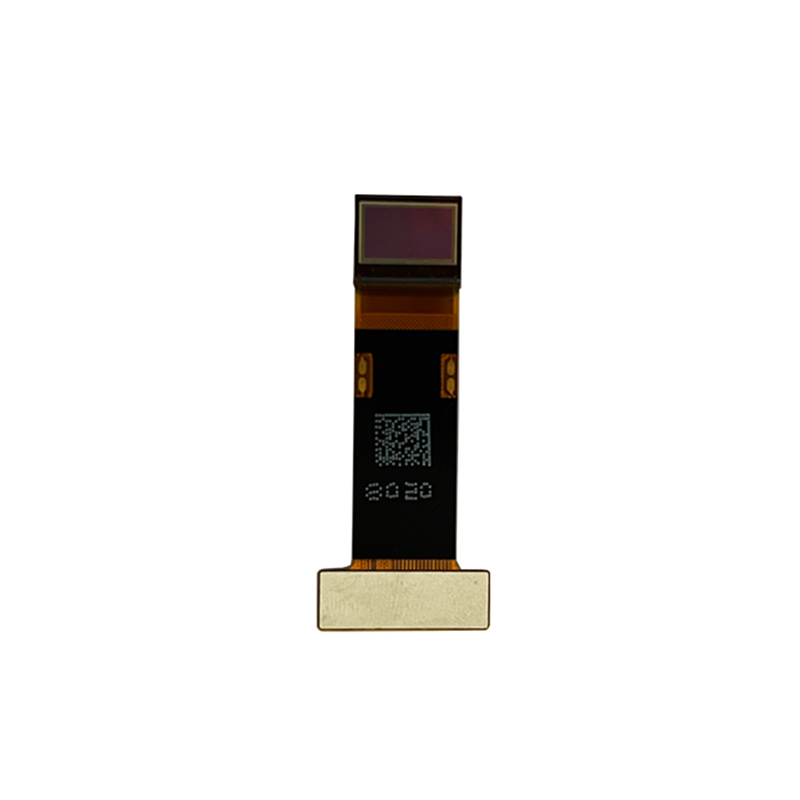

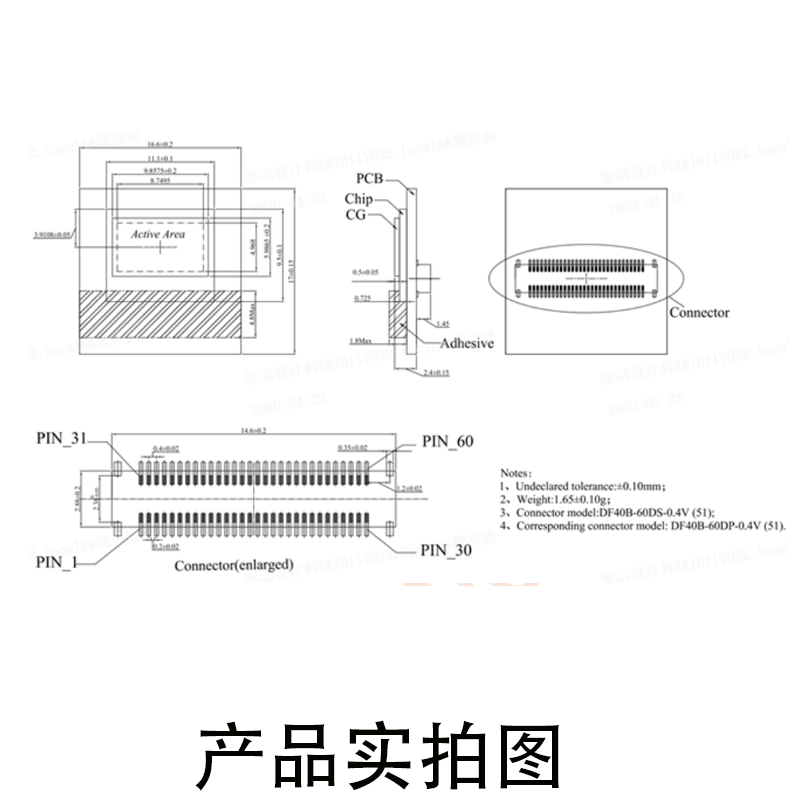

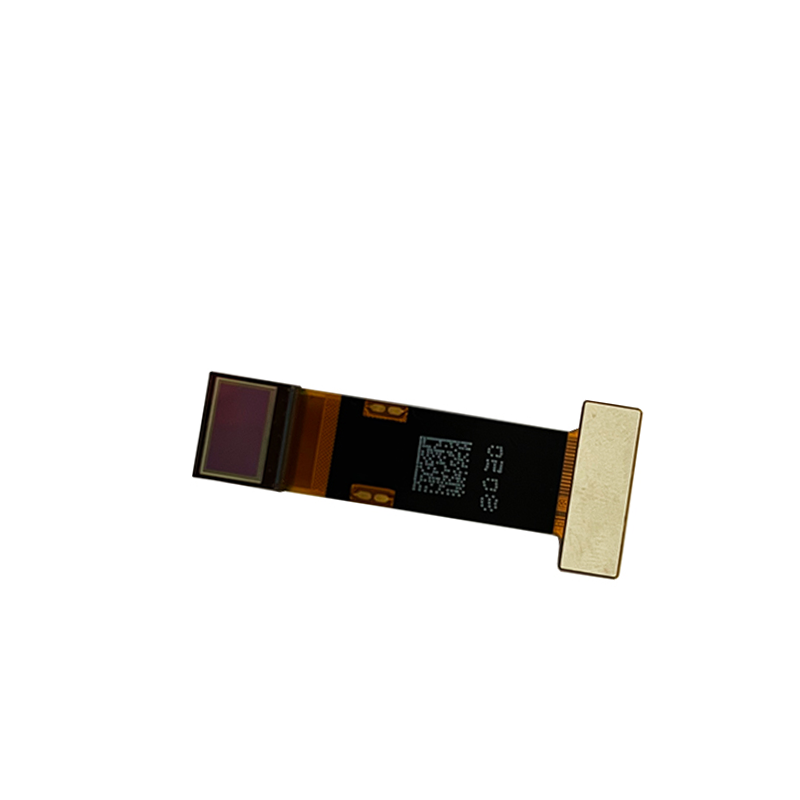

FPC模块引脚说明

1 GND Power Supply Circuit ground
2 GND Power Supply Circuit ground
3 TEST PIN 1 Input TEST pin(no connect,Floating ) 4 VREF2 Output VREF voltage,Connect a capacitor for stabilization
5 VREF3 Output VREF voltage,Connect a capacitor for stabilization
6 VGMP Output Gamma top voltage,Connect a capacitor for stabilization
7 VGSP Output Gamma bottom voltage,Connect a capacitor for stabilization
8 AVEE Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
9 VREF1 Output VREF voltage,Connect a capacitor for stabilization
10 IM [0] Input
11 OTP_SEL Input MTP type selection.
OTP_SEL, connect to GND : use internal OTP
12 OCP_OUT Output Over current protect flag
13 TEST PIN 2 Input TEST pin,connect to GND
14 SDA Input/ Output
Bi-direction data PIN in I2C I/F
If this pin is not used, please connect to VDDI
15 SCL_WRX Input
16 TEST PIN 3 Output TEST pin,(no connect,Floating )
17 TEST PIN 4 Input/ Output TEST pin,(no connect,Floating )
18 RESX Input
This signal will reset the device and must be applied to properly initialize the chip,
Signal is active low
19 MVDDL Output Internal system Power,Connect a capacitor for stabilization
20 MVDDA Output Internal system Power,Connect a capacitor for stabilization
21 GND Power Supply Circuit ground
22 VDDI Power Supply External power supply(1.8V for digital system power)
23 DVDD Output Internal system Power,Connect a capacitor for stabilization
24 DVDD Output Internal system Power,Connect a capacitor for stabilization
25 AVDD Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
26 ELVDD Output Power supply for OLED cell,Connect a capacitor for stabilization
27 VCOM Output Power supply for OLED cell,Connect a capacitor for stabilization
28 VCOM Output Power supply for OLED cell,Connect a capacitor for stabilization
29 GND Power Supply Circuit ground
30 GND Power Supply Circuit ground
31 GND Input Circuit ground for MIPI
32 DATAP2_PTA Input Differential small amplitude signal of MIPI data input
33 DATAN2_PTA Input Differential small amplitude signal of MIPI data input
34 GND Input Circuit ground for MIPI
35 DATAP1_PTA Input Differential small amplitude signal of MIPI data input
36 DATAN1_PTA Input Differential small amplitude signal of MIPI data input
37 GND Input Circuit ground for MIPI
38 CLKP_PTA Input MIPI CLK
39 CLKN_PTA Input MIPI CLK
40 GND Input Circuit ground for MIPI
41 DATAP0_PTA Input/ Output Differential small amplitude signal of MIPI data input
42 DATAN0_PTA Input/ Output Differential small amplitude signal of MIPI data input
43 GND Input Circuit ground for MIPI
44 DATAP3_PTA Input Differential small amplitude signal of MIPI data input
45 DATAN3_PTA Input Differential small amplitude signal of MIPI data input
46 GND Input Circuit ground for MIPI
47 DATAP2_PTB Input Differential small amplitude signal of MIPI data input
48 DATAN2_PTB Input Differential small amplitude signal of MIPI data input
49 GND Input Circuit ground for MIPI
50 DATAP1_PTB Input Differential small amplitude signal of MIPI data input
51 DATAN1_PTB Input Differential small amplitude signal of MIPI data input
52 GND Input Circuit ground for MIPI
53 CLKP_PTB Input MIPI CLK
54 CLKN_PTB Input MIPI CLK
55 GND Input Circuit ground for MIPI
56 DATAP0_PTB Input/ Output Differential small amplitude signal of MIPI data input
57 DATAN0_PTB Input/ Output Differential small amplitude signal of MIPI data input
58 GND Input Circuit ground for MIPI
59 DATAP3_PTB Input Differential small amplitude signal of MIPI data input
60 DATAN3_PTB Input Differential small amplitude signal of MIPI data input
