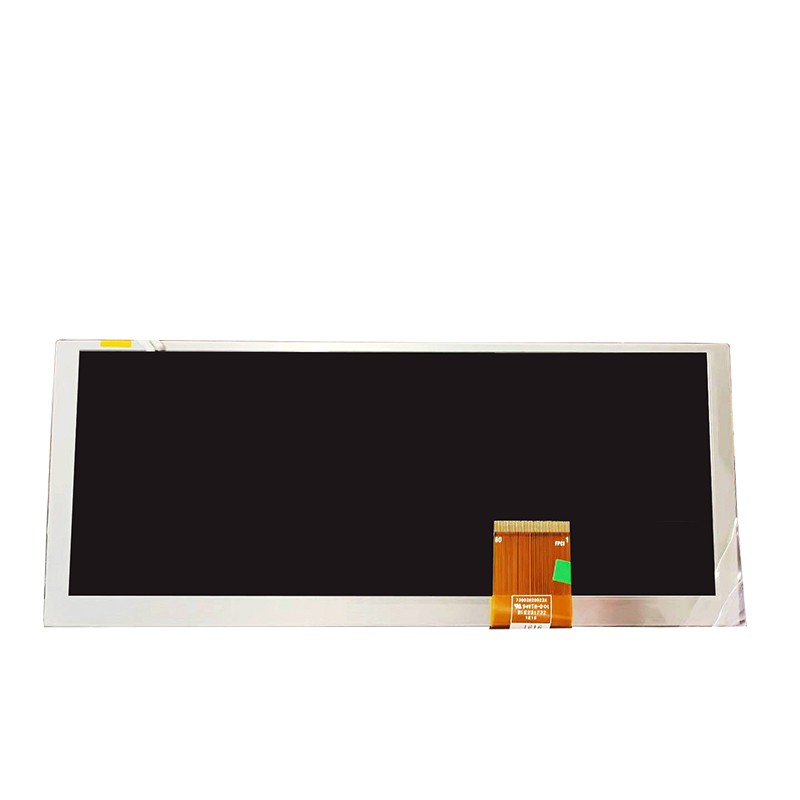

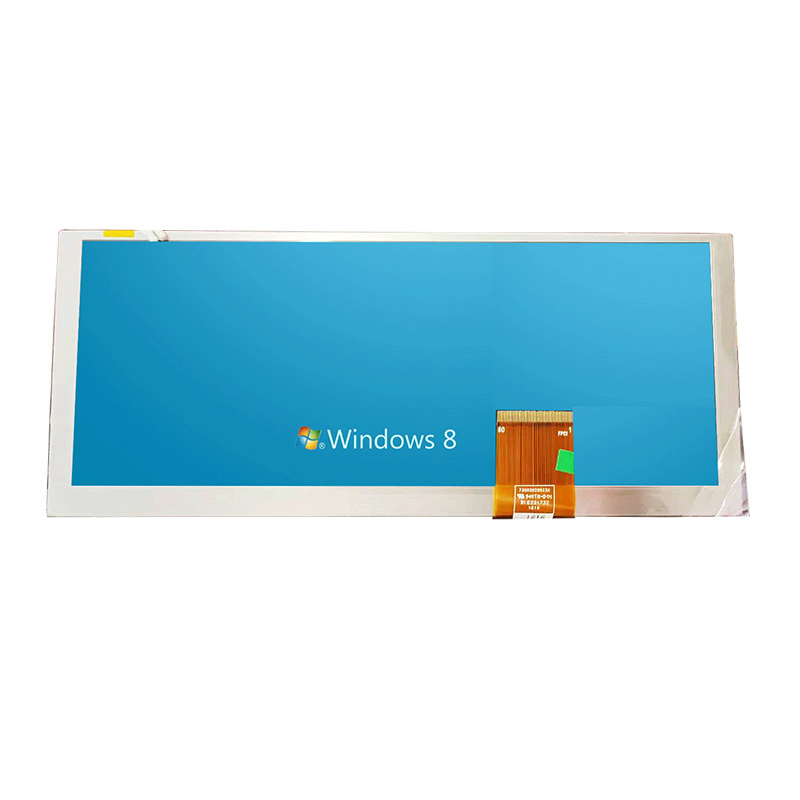

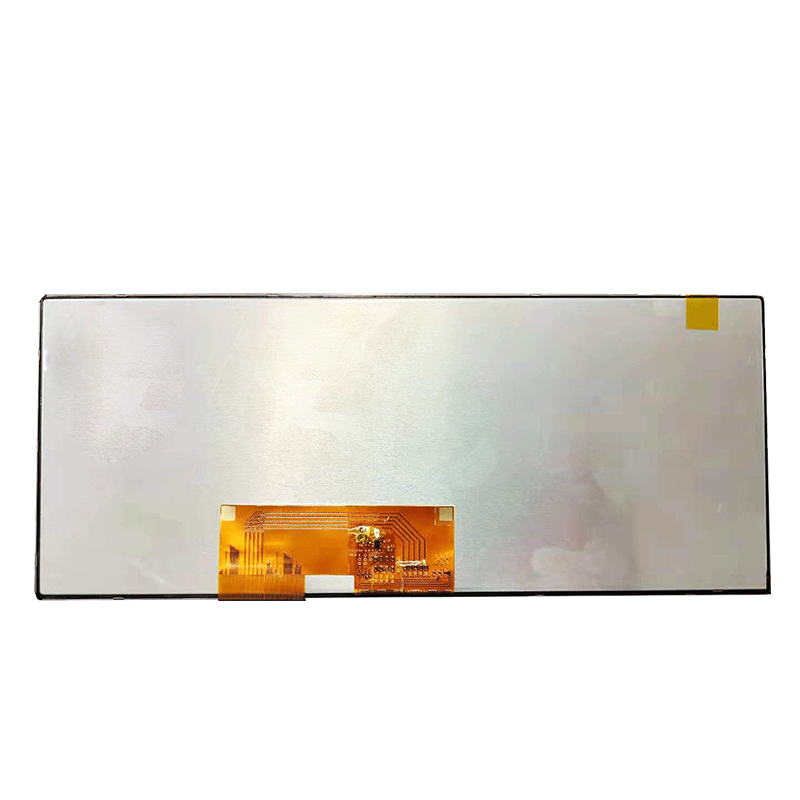

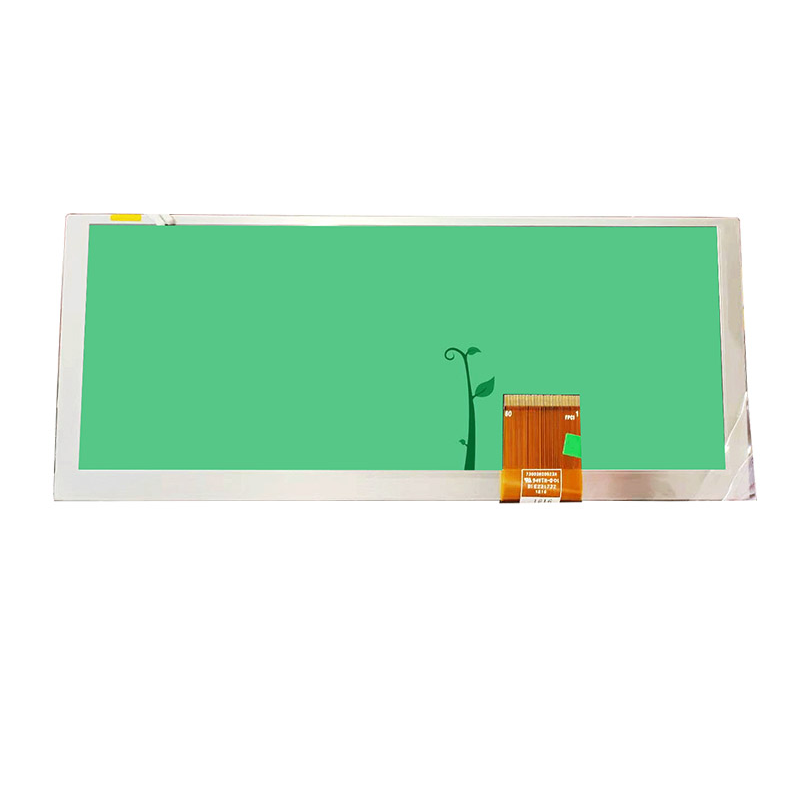

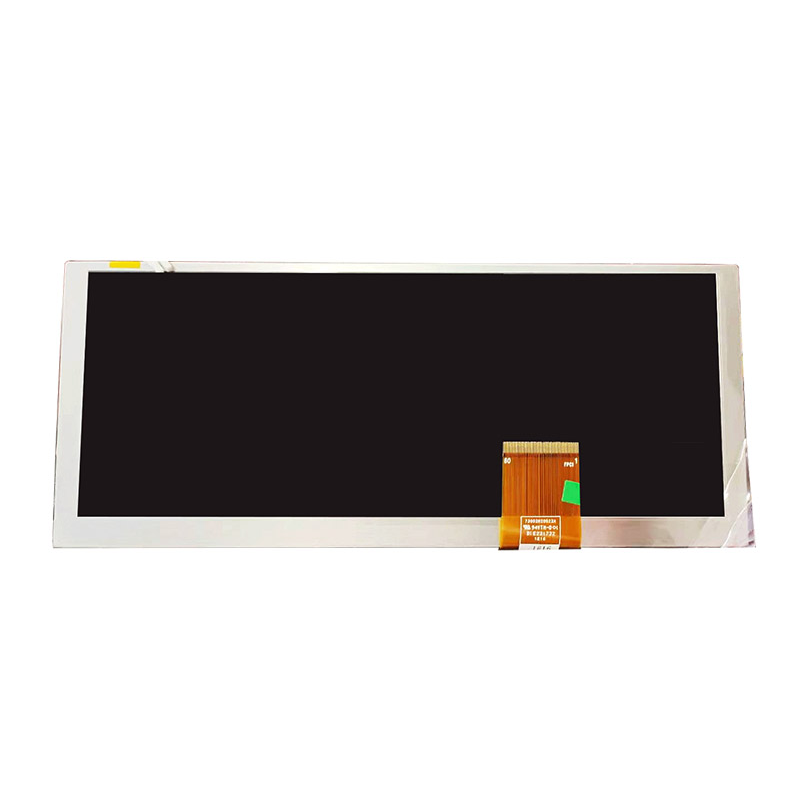

8.8寸液晶屏1280*480 IPS 接口lvds 车载导航条形屏

发布时间:2021/09/26 TFT LCD 浏览次数:72

商品原价399元样品价280元

【显示尺寸】:8.8寸液晶屏
【分辨率】:1280 x 480
【接口】:lvds
【亮度】:500
【引脚】: 60pin
【定制】:支持定制开发
【型号】:YX088WA01XN

详细参数

屏幕简介

型号YX088WA01XN,8.8寸液晶屏, 分辨率1280RGB)*480 IPS 209.28* 78.48 229.6*97.3*6 亮度500 接口lvds等等,需要了解更加多的参数的伙伴们,可以和我司的业务员对接,另外我们也可以液晶屏定制开发,如果这方面的开发需求也可以联系我们.

宇锡 邹生:15818552076 微信同号
地址:深圳西乡簕竹角鸿竹雍启C栋

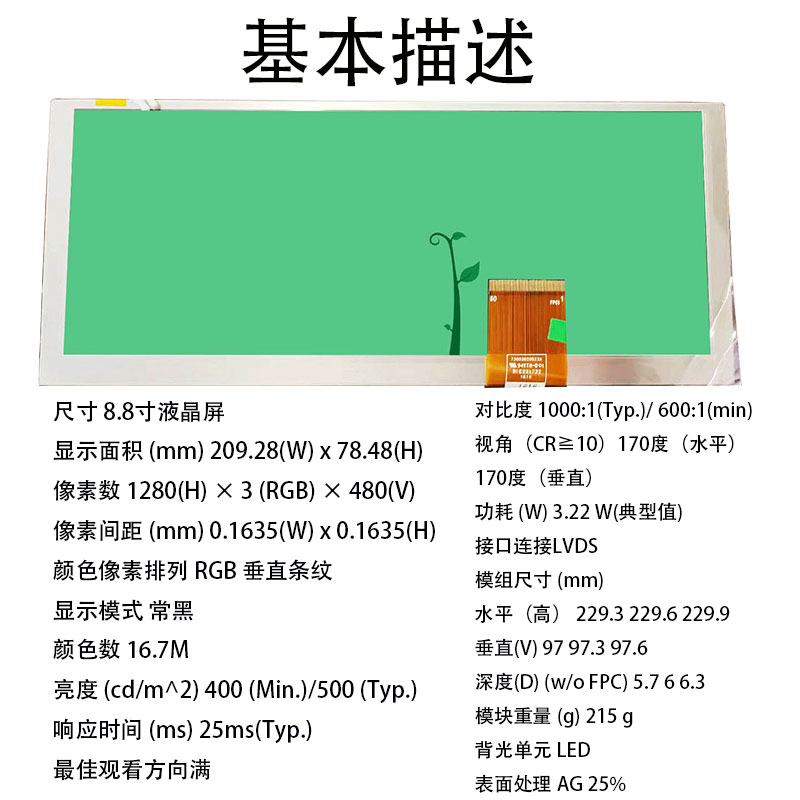

屏幕参数

尺寸 8.8寸液晶屏
显示面积 (mm) 209.28(W) x 78.48(H)
像素数 1280(H) × 3 (RGB) × 480(V)
像素间距 (mm) 0.1635(W) x 0.1635(H)
颜色像素排列 RGB 垂直条纹
显示模式 常黑
颜色数 16.7M
亮度 (cd/m^2) 400 (Min.)/500 (Typ.)
响应时间 (ms) 25ms(Typ.)
最佳观看方向满
对比度 1000:1(Typ.)/ 600:1(min)
视角(CR≧10)170度(水平)
170度(垂直)
功耗 (W) 3.22 W(典型值)
接口连接LVDS

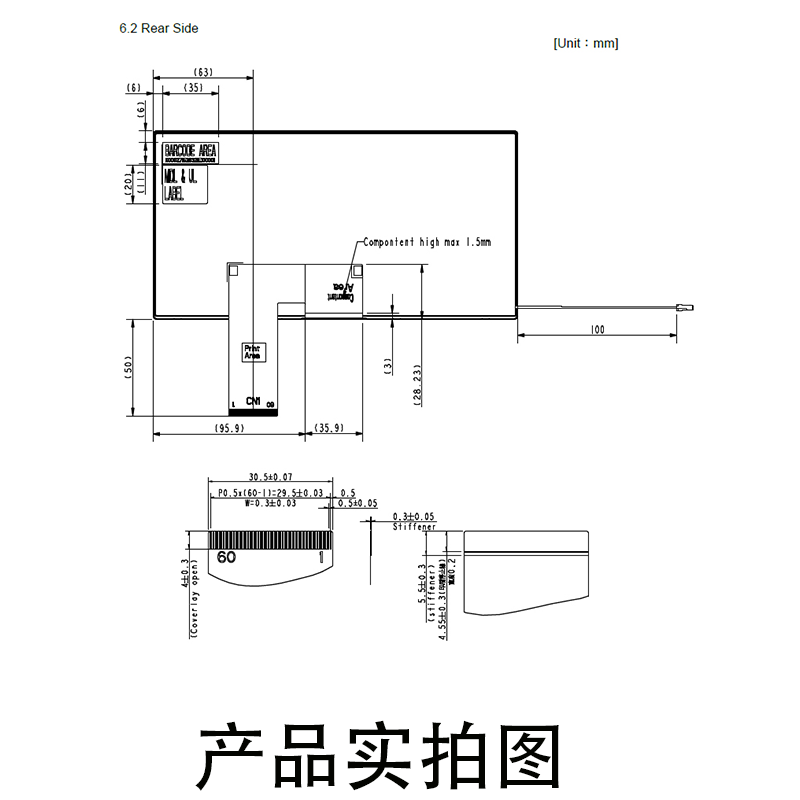

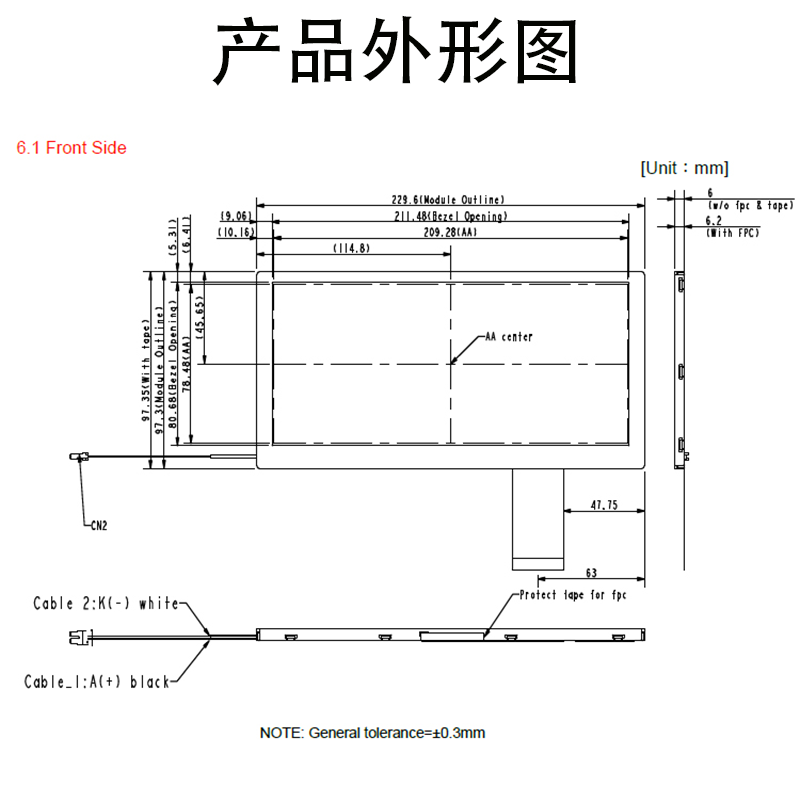

模组尺寸 (mm)
水平(高) 229.3 229.6 229.9
垂直(V) 97 97.3 97.6
深度(D) (w/o FPC) 5.7 6 6.3
模块重量 (g) 215 g
背光单元 LED
表面处理 AG 25%

引脚定义

1 AGND Analog ground
2 AVDD Analog power
3 DVDD Digital power
4 GND Digital ground
5 NC Not connect
6 DVDD Digital power
7 GND Digital ground
8 V14 Gamma correction voltage reference
9 V13 Gamma correction voltage reference
10 V12 Gamma correction voltage reference
11 V11 Gamma correction voltage reference
12 V10 Gamma correction voltage reference
13 V9 Gamma correction voltage reference
14 V8 Gamma correction voltage reference
15 GND Digital ground
16 DVDD_LVDS LVDS power
17 GND Digital ground
18 PIND3 Positive LVDS differential data input
19 NIND3 Negative LVDS differential data input
20 GND Digital ground
21 PINC Positive LVDS differential clock input
22 NINC Negative LVDS differential clock input
23 GND Digital ground
24 PIND2 Positive LVDS differential data input
25 NIND2 Negative LVDS differential data input
26 GND Digital ground
27 PIND1 Positive LVDS differential data input
28 NIND1 Negative LVDS differential data input
29 GND Digital ground
30 PIND0 Positive LVDS differential data input
31 NIND0 Negative LVDS differential data input
32 GND Digital ground
33 GND_LVDS LVDS ground
34 GRB
Global reset pin. Active low to enter reset state.
Suggest to connecting with an RC reset circuit for stability.
Normally pull high. (R=47KΩ, C=1μF)
35 STBYB
Standby mode, normally pull high
STBYB=”1”, normal operation
STBYB=”0”,timing control, source driver will turn off, all output are
GND, suggest to turn off AVDD power simultaneously
36 SHLR Left or right display control
37 DVDD Digital power
38 UPDN Up / down display control
39 AGND Analog ground
40 AVDD Analog power
41 NC Not connect
Shenzhen Yousee Technology Co., Ltd Product Specification
P/N: YX088WA01XN Version: 06 YX-RD-001-A
10/20
42 NC Not connect
43 GND Digital ground
44 DVDD Digital Power
45 GND Digital ground
46 V7 Gamma correction voltage reference
47 V6 Gamma correction voltage reference
48 V5 Gamma correction voltage reference
49 V4 Gamma correction voltage reference
50 V3 Gamma correction voltage reference
51 V2 Gamma correction voltage reference
52 V1 Gamma correction voltage reference
53 GND Digital ground
54 DVDD Digital power
55 SELB
6bit/8bit mode select,
SELB = “1”, LVDS input data is 8bits
SELB = “0”, LVDS input data is 6bits
56 VGH Positive power for TFT
57 DVDD Digital power for Gate IC
58 VGL Negative power for TFT
59 GND Digital ground for Gate IC
60 NC Not connect
