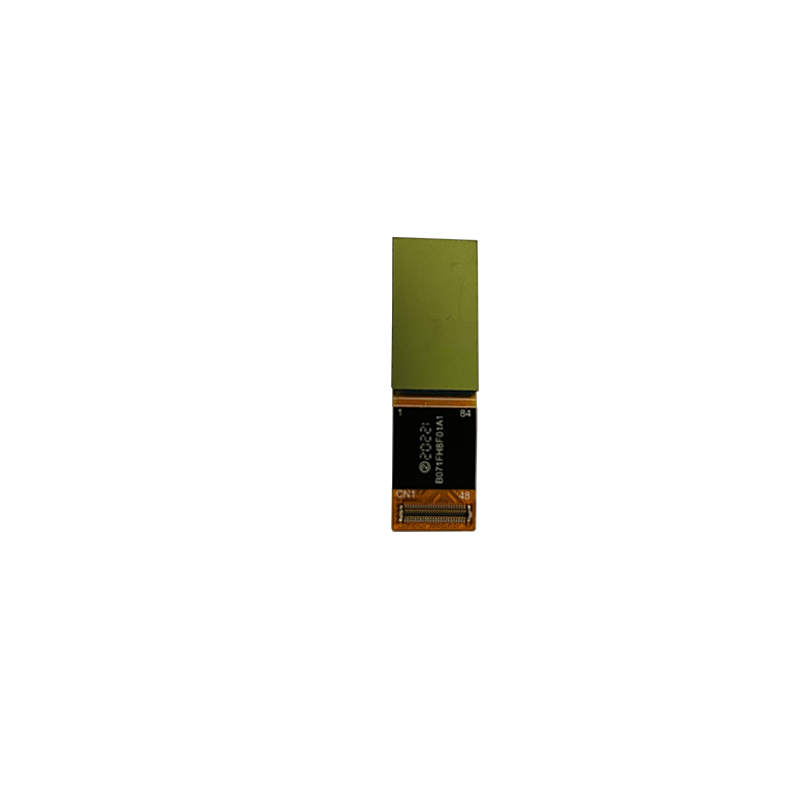

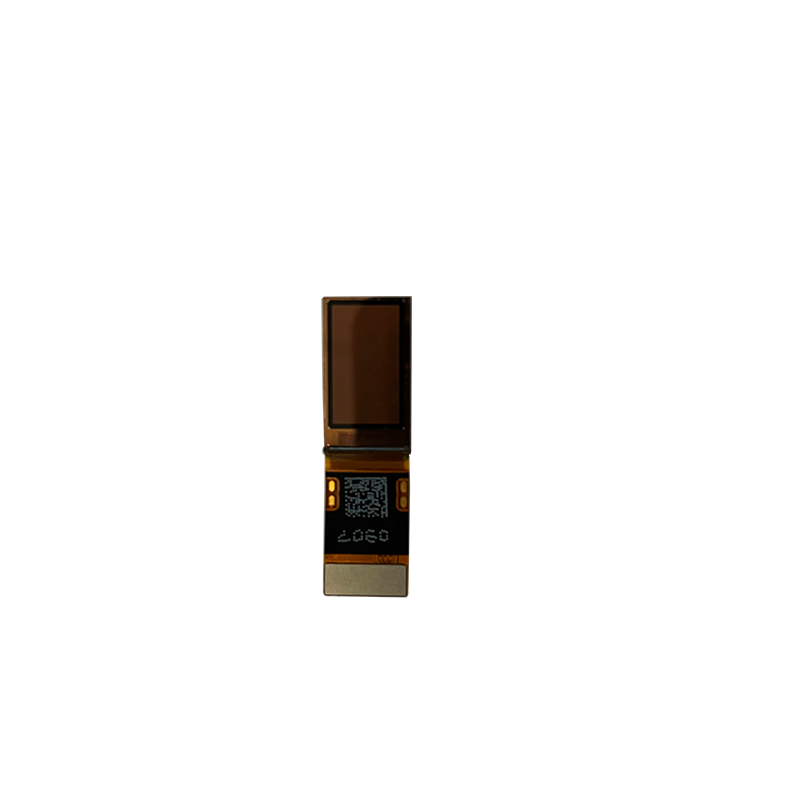

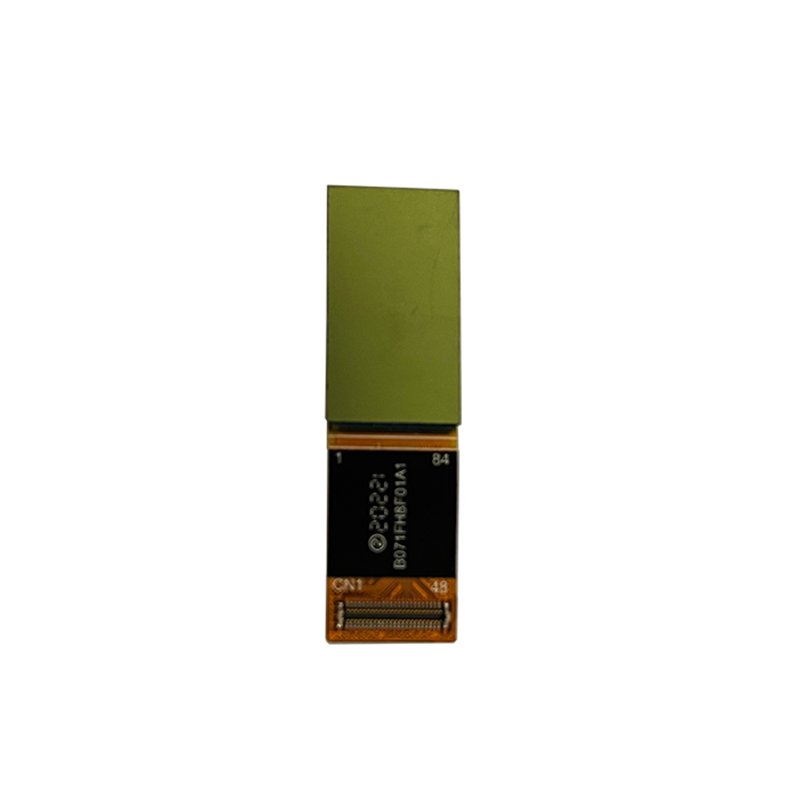

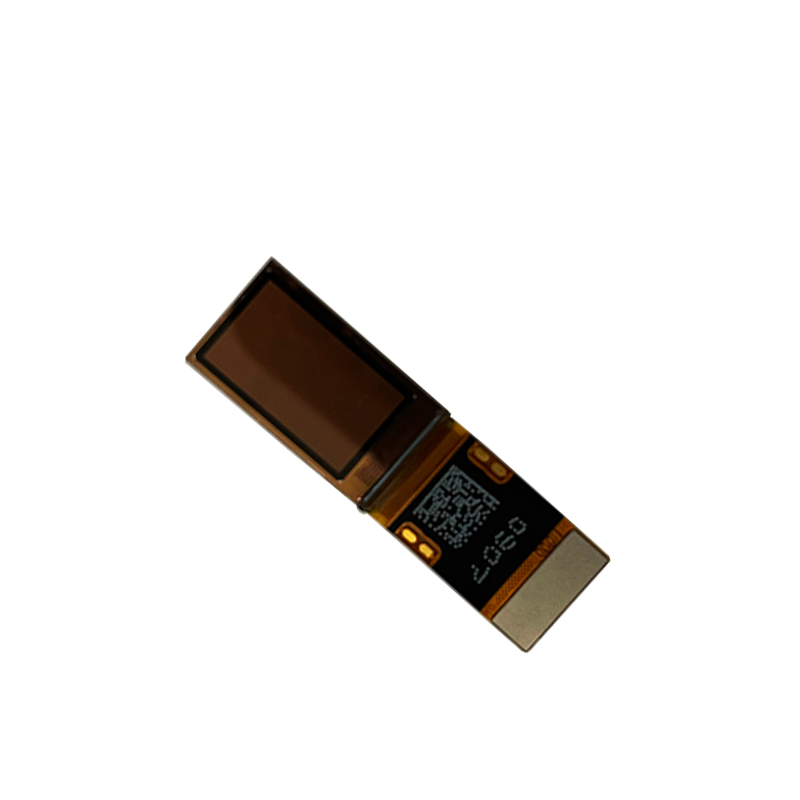

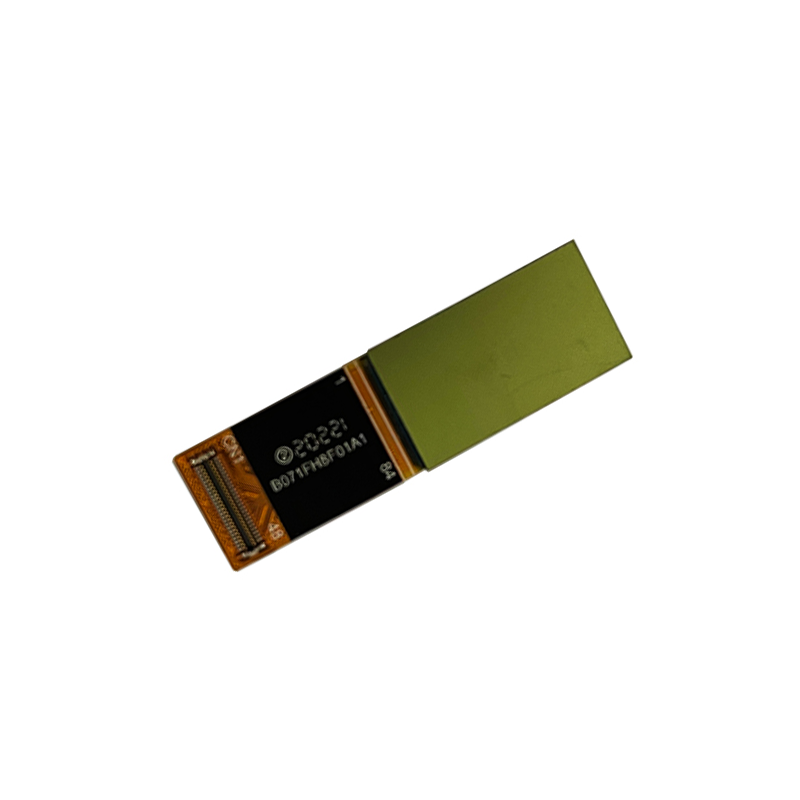

0.71寸液晶屏1920 x1080 MIPI接口48pinOLED面板模块近眼显示器

发布时间:2021/09/03 TFT LCD 浏览次数:85

商品原价1999元样品价1600元

【显示尺寸】:0.71寸液晶屏
【分辨率】:1920 x1080
【接口】:MIPI
【亮度】:400
【引脚】: 48pin
【定制】:支持定制开发
【型号】:VX071FHP-NH0

详细参数

概述

VX071FHP-NH0/VX071FHM-NH0 是 0.71 英寸对角线、FHD 分辨率 (1920 x1080)、有源矩阵彩色基于单晶硅背板的OLED(Organic Light Emitting Display)面板模块。像素电路和驱动IC集成在硅背板上,以获得紧凑的尺寸和极低的功耗。

1.8 cm(0.71型)有源矩阵彩色OLED面板模块,需要这一款屏幕的产品规格书的详细资料,需要液晶屏定制的请联系我司.

宇锡 邹生:15818552076 微信同号
地址:深圳西乡簕竹角鸿竹雍启C栋

应用

虚拟现实应用(AR/VR)、头戴式显示器、近眼显示器等)

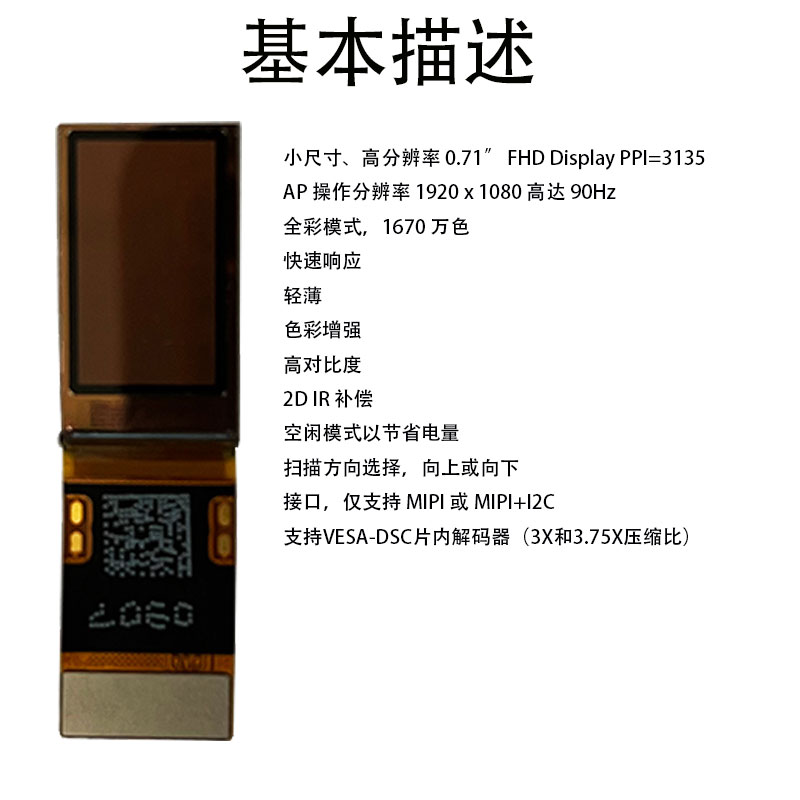

特点

小尺寸、高分辨率 0.71” FHD Display PPI=3135
AP 操作分辨率 1920 x 1080 高达 90Hz
全彩模式,1670 万色
快速响应
轻薄
色彩增强
高对比度
2D IR 补偿
空闲模式以节省电量
扫描方向选择,向上或向下
接口,仅支持 MIPI 或 MIPI+I2C
支持VESA-DSC片内解码器(3X和3.75X压缩比)
支持放大 1.33x(1440×810 到 1920 x 1080)和 1.5x(1280×720 到 1920 x 1080)

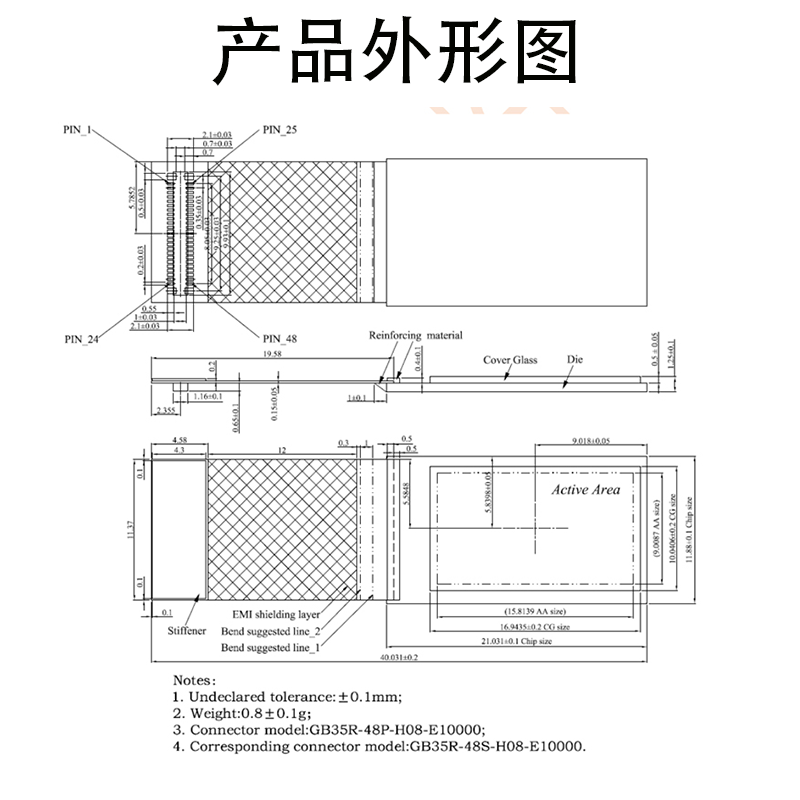

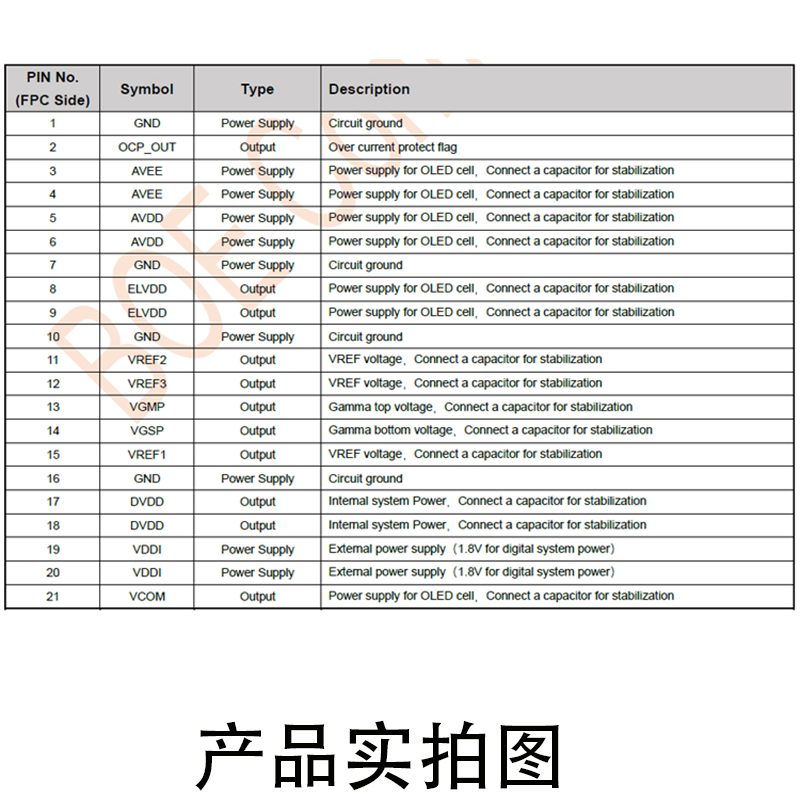

引脚定义

1 GND Power Supply Circuit ground
2 OCP_OUT Output Over current protect flag
3 AVEE Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
4 AVEE Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
5 AVDD Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
6 AVDD Power Supply Power supply for OLED cell,Connect a capacitor for stabilization
7 GND Power Supply Circuit ground
8 ELVDD Output Power supply for OLED cell,Connect a capacitor for stabilization
9 ELVDD Output Power supply for OLED cell,Connect a capacitor for stabilization
10 GND Power Supply Circuit ground
11 VREF2 Output VREF voltage,Connect a capacitor for stabilization
12 VREF3 Output VREF voltage,Connect a capacitor for stabilization
13 VGMP Output Gamma top voltage,Connect a capacitor for stabilization
14 VGSP Output Gamma bottom voltage,Connect a capacitor for stabilization
15 VREF1 Output VREF voltage,Connect a capacitor for stabilization
16 GND Power Supply Circuit ground
17 DVDD Output Internal system Power,Connect a capacitor for stabilization
18 DVDD Output Internal system Power,Connect a capacitor for stabilization
19 VDDI Power Supply External power supply(1.8V for digital system power)
20 VDDI Power Supply External power supply(1.8V for digital system power)
21 VCOM Output Power supply for OLED cell,Connect a capacitor for stabilization
22 VCOM Output Power supply for OLED cell,Connect a capacitor for stabilization
23 GND Power Supply Circuit ground
24 TEST PIN1 Input Test pin ( no connect, floating )
25 TEST PIN2 Input Test pin ( connect to GND )
26 SDA Input/ Output
Bi-direction data PIN in I2C I/F
If this pin is not used, please connect to VDDI
27 SCL_WRX Input
Synchronous clock signal in I2C I/F.
If this pin is not used, please connect to VDDI
28 TEST PIN3 Input Test pin ( no connect, floating )
29 IM [0] Input
30 RESX Input
This signal will reset the device and must be applied to properly initialize the chip,
Signal is active low
31 MVDDL Output Internal system Power,Connect a capacitor for stabilization
32 MVDDA Output Internal system Power,Connect a capacitor for stabilization
33 GND Power Supply Circuit ground
34 DATAP2 Input Differential small amplitude signal of MIPI data input
35 DATAN2 Input Differential small amplitude signal of MIPI data input
36 GND Input Circuit ground for MIPI
37 DATAP1 Input Differential small amplitude signal of MIPI data input
38 DATAN1 Input Differential small amplitude signal of MIPI data input
39 GND Input Circuit ground for MIPI
40 CLKP Input MIPI CLK
41 CLKN Input MIPI CLK
42 GND Input Circuit ground for MIPI
43 DATAP0 Input/ Output Differential small amplitude signal of MIPI data input
44 DATAN0 Input/ Output Differential small amplitude signal of MIPI data input
45 GND Input Circuit ground for MIPI
46 DATAP3 Input Differential small amplitude signal of MIPI data input
47 DATAN3 Input Differential small amplitude signal of MIPI data input
48 GND Input Circuit ground
