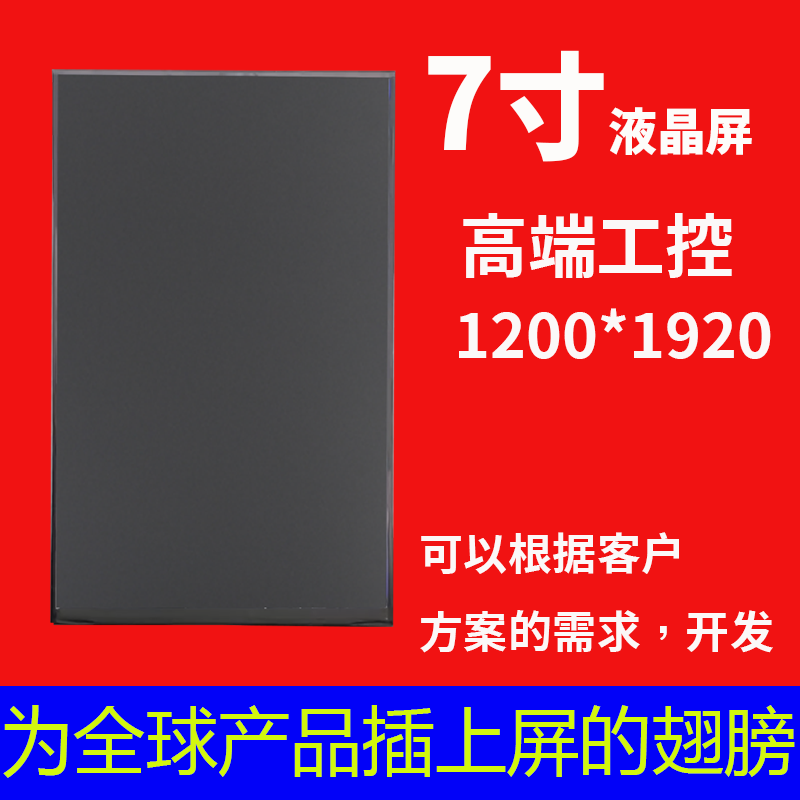

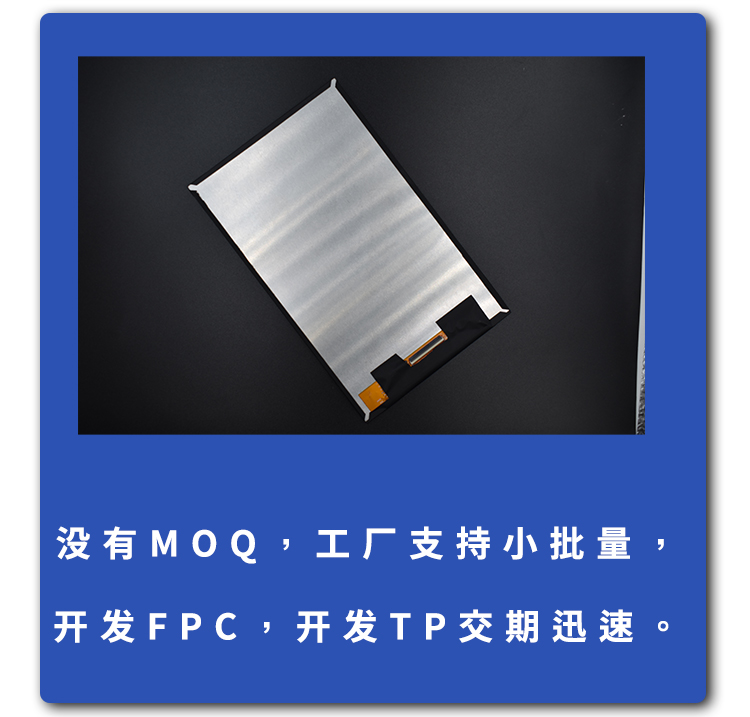

宇锡（Yousee）7寸 1200*1920分辨率 MIPI接口，高端工控7寸显示，颜值担当竖屏

屏幕简介

7寸Mipi竖屏720*1280分辨率叱咤风云多年，现在当家花旦是：800*1280分辨率。
疫情反反复复，电子行业痛痛苦苦。但是总有不把老板和投资方的钱当钱花的产品家就要设计高端的产品，就要更好的显示效果。

BOE面板厂的同志，带着7寸，1200*1920分辨率的玻璃，讲着春天的故事，来到还是夏天的深圳。

宇锡（Yousee）科技执念，为天马行空的智能化产品插上屏的翅膀。既然产品家需要好的显示效果的7寸竖屏倒闭他老板。我们坚决推荐宇锡：YX70022ACT
7寸 1200*1920分辨率，竖屏，单屏650nit亮度，透过TP500亮度，可以做到阳光下可视。目前该产品主要用于高端工控显示，医疗显示器，户外三防小平板，北斗通讯测亩仪，测绘工具显示器。

引脚定义

NC 1 – No Connection
VDD1V8 2 P Power supply for system ,IOVCC=1.8V
VDD1V8 3 P Power supply for system ,IOVCC=1.8V
GND 4 P Ground
Reset 5 P System Reset pin
NC 6 – No Connection
GND 7 P Ground
MIPI_D0_N 8 I/O Negative MIPI differential Data Input 0
MIPI_D0_P 9 I/O Positive MIPI differential Data Input 0
GND 10 P Ground
MIPI_D1_N 11 I Negative MIPI differential Data Input 1
MIPI_D1_P 12 I Positive MIPI differential Data Input 1
GND 13 P Ground
MIPI_CLK_N 14 I Negative MIPI differential Clock Input
MIPI_CLK_P 15 I Positive MIPI differential Clock Input
GND 16 P Ground
MIPI_D2_N 17 I Negative MIPI differential Data Input 2
MIPI_D2_P 18 I Positive MIPI differential Data Input 2
GND 19 P Ground
MIPI_D3_N 20 I Negative MIPI differential Data Input 3
MIPI_D3_P 21 I Positive MIPI differential Data Input 3
GND 22 P Ground
HS 23 O Horizontal scan Signal for touch
VS 24 O Vertical scan Signal for touch
GND 25 P Ground
TE 26 O Tearing effect output signal for NVM(OTP),Let it open when not in
use
PWMO 27 O PWM control signal for LED driver (CABC)
BIST 28 I Enables the Test Image Generation function, if not used,
connect to ground
NC 29 – No Connection
GND 30 P Ground
LED- 31 P LED Cathode
LED- 32 P LED Cathode
NC 33 – No Connection
VSN 34 P Analog supply negative voltage
VSN 35 P Analog supply negative voltage
NC 36 – No Connection
VSP 37 P Analog supply positive voltage
VSP 38 P Analog supply positive voltage
LED+ 2 P LED Anode
LED+ 3 P LED Anode
